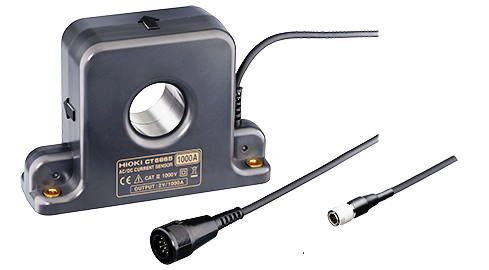

Hioki CT6865 AC/DC电流传感器（1000A）

catalog

datasheet

- Rated input current:     1000 A AC/DC
- Max. allowable input:     1200 A AC/DC
(Continuous 1800 A peak, up to 100 Hz, up to 40 °C (104 °F), other requires derating characteristics)
- Frequency characteristics:    Amplitude: DC to 20 kHz
                                                Phase: DC to 1 kHz
- Amplitude and Phase accuracy:    DC ±0.05 % rdg. ±0.01 % f.s.
(Phase: Not defined)
16 Hz ≤ f ≤ 66 Hz ±0.05 % rdg. ±0.01 % f.s., Phase: ±0.2 deg.
- Amplitude is defined to 20 kHz, Phase is defined to 1 kHz
- Power consumption:    7 VA max.
(at 1000 A/55 Hz, ±12 V power requirement)
- Output voltage rate:    2 V /rated current value (voltage output with the Sensor Unit 9555-10, use with a device having a 1 MΩ input resistance or higher)
Max. rated voltage to earth    AC/DC 1000 V (50/60 Hz, CAT III )
Core diameter    φ 36 mm (1.42 in)
- Operating temperature, humidity:    -30°C to +85°C (-22°F to 185°F)
80% rh or less (with no condensation)
- Power supply:    DC ±11 V to ±15 V (Power suppled via the 9555-10, which supports 100 to 240 V AC)
- Dimensions and mass:    160 mm (6.30 in)W × 112 mm (4.41 in)H × 50 mm (1.97 in)D, 980 g (34.6 oz), cord length 3 m (9.84 ft)
- Accessories:    Instruction manual ×1, Mark bands ×6
