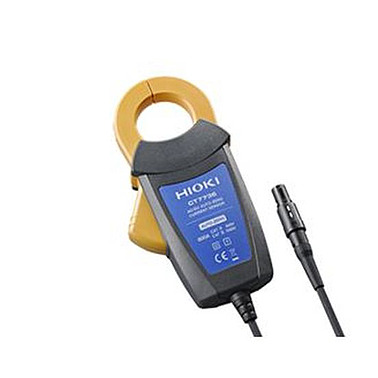

HIOKI CT7736 AC/DC自动调零电流传感器600A

  • 制造商: HIOKI
    Model: CT7736
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Rated measurement current: 600 A AC/DC

Max. measurement current: 600 A (requires derating at frequency)

Max. allowable peak input 900 A peak

Bandwidth: DC to 5 kHz (-3dB)

Typical accuracy: ±1.8 deg. (DC < f ≤ 66 Hz)

Output rate: 1 mV/A

Max. rated voltage to earth: AC/DC 600 V (CAT IV)

AC/DC 1000 V (CAT III)

Core diameter: φ 33 mm (1.30 in) or less

Output connectors: HIOKI PL 14

Dimensions and mass: 64 mm (2.52 in)W × 160 mm (6.30 in)H × 34 mm (1.34 in)D, 320 g (11.3 oz), Cable length 2.5 m (8.20 ft)

Accessories:None
