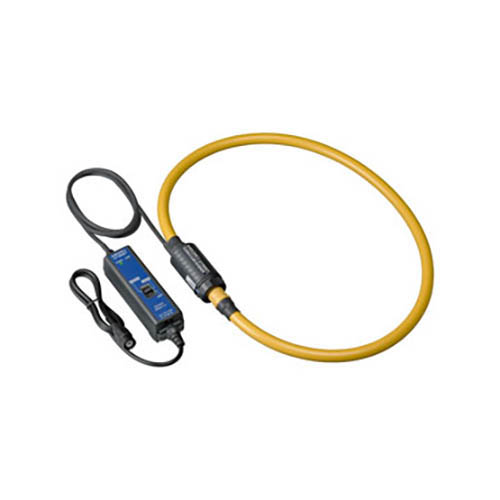

HIOKI CT9667-03 FLEXIBLE CLAMP ON SENSOR

  • 制造商: HIOKI
    Model: CT9667-03
    来源: Japan
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Rated input current :AC 5000 A to 500 A     AC 500 A to 50 A
Rated output current: 500mV AC f.s. (0.1mV AC/A)     500mV AC f.s. (1mV AC/A)
Amplitude accuracy :    ±2% rdg. ±0.3% f.s. (
Phase accuracy :±1° (45 to 66 Hz)
Max. allowable input     Continuous 10000 A rms (at 45 - 66 Hz)
Frequency characteristics :10 Hz to 20 kHz ±3 dB (deviation from accuracy)
Max. rated voltage to earth :1000 V AC rms (insulated wire)
Core jaw dia. :φ 254 mm (10 inch)
Power supply :LR06 (AAA) × 2
 Accessories :LR06 (AAA) alkaline batteries × 2

Details

catalog

Datasheet

manual
