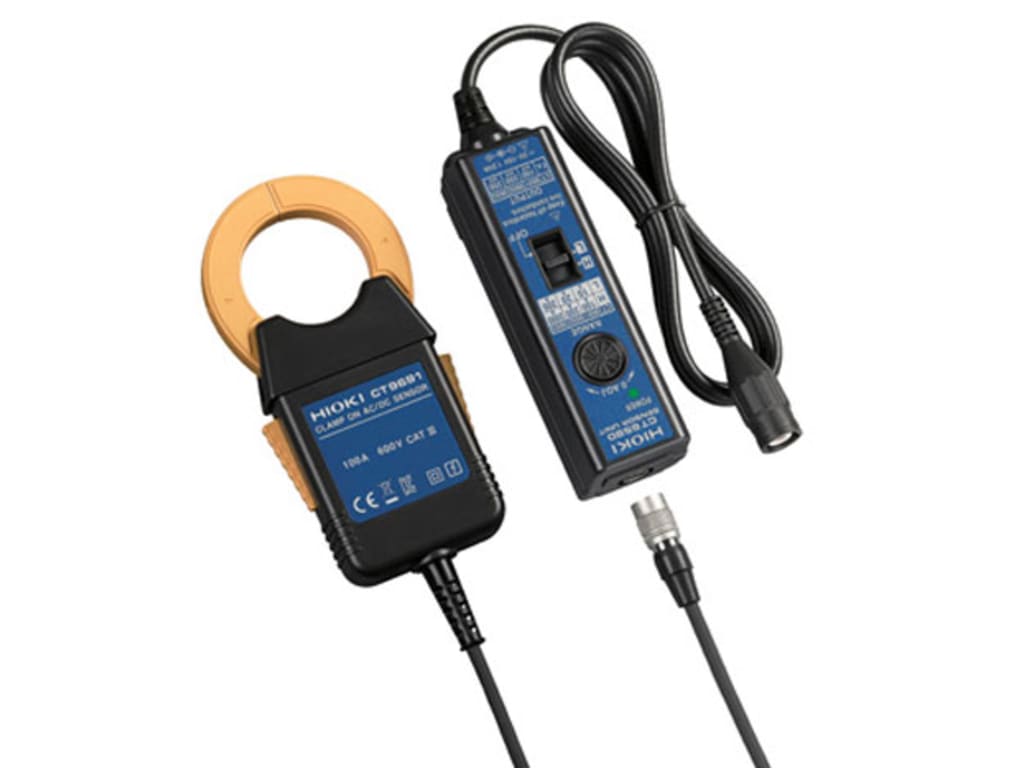

Hioki CT9691 钳形表交直流传感器(100A)

  • 制造商: HIOKI
    Model: CT9691
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




- Rated input current:    100 A AC/DC
- Max. allowable input:    Continuous 100 Arms
- Bandwidth:    DC to 10 kHz (-3dB)
- Max. rated voltage to earth:    600 V AC/DC CAT III
- Power consumption:     50 mVA
- Core diameter:    φ 35 mm (1.38 in)
- Dimensions and mass:    53 mm (2.09 in) W × 129 mm (5.08 in) H × 18 mm (0.71 in) D, 230 g (8.1 oz)
- Cord length:    2 m (6.56 ft)
- Accessories:    Instruction manual ×1

Details

- Rated input current:    100 A AC/DC
- Max. allowable input:    Continuous 100 Arms
- Bandwidth:    DC to 10 kHz (-3dB)
- Max. rated voltage to earth:    600 V AC/DC CAT III
- Power consumption:     50 mVA
- Core diameter:    φ 35 mm (1.38 in)
- Dimensions and mass:    53 mm (2.09 in) W × 129 mm (5.08 in) H × 18 mm (0.71 in) D, 230 g (8.1 oz)
- Cord length:    2 m (6.56 ft)
- Accessories:    Instruction manual ×1
