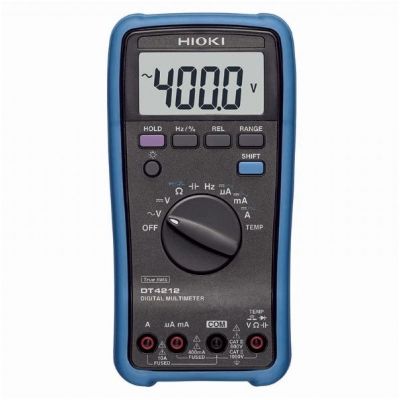

Hioki DT4212 数字万用表 (true RMS)




DC Voltage 400.0 mV to 1000 V, 5 ranges, Basic accuracy: ±0.5 % rdg. ±3 dgt.
AC Voltage 40 to 500 Hz 400.0 mV to 1000 V, 5 ranges, Frequency characteristics: 40 Hz - 500 Hz
Basic accuracy: ±1.0 % rdg. ±5 dgt. (True RMS, crest factor 2 to 1.5)
Resistance 400.0 Ω to 40.00 MΩ, 6 ranges, Basic accuracy: ±0.5 % rdg. ±2 dgt.
DC Current 400.0 μA to 10.00 A, 6 ranges, Basic accuracy: ±1.2 % rdg. ±3 dgt.
AC Current, 40 to 500 Hz 400.0 μV to 10.00 A, 6 ranges, Frequency characteristics: 40 Hz - 500 Hz
Basic accuracy: ±1.2 % rdg. ±5 dgt. (True RMS, crest factor 2 to 1.5)
Temperature (use with DT4910) K: -55.0 to 400.0 °C, 400 to 700 °C, Add the Temperature probe accuracy to Basic accuracy: ±2.0 % rdg. ±1 °C
Voltage detection N/A
C (capacitance) 50.00 nF to 100.0 μF, 5 ranges, Basic accuracy: ±2.0 % rdg. ±5 dgt.
Frequency AC V measurement: 5.000 Hz (1 Hz or more) to 5.000 MHz, 7 ranges, Basic accuracy: ±0.1 % rdg. ±3 dgt.
Minimum sensitivity voltage: Square wave of 1.5 Vrms
Continuity check Continuity threshold [ON]: 90 Ω ±40 Ω or less (Buzzer sound)
Diode test Open terminal voltage: 3.0 V or less, Testing current 0.5 mA
Environment Operating temperature: -10 to 50 °C, Storage temperature: -20 to 60 °C
Other functions Display value hold, Relative display, Auto-power off, Back light
Display 4-digits LCD, max. 4000 counts
Display refresh rates 3 times/s
Power supply LR6 alkaline batteries ×2, R6P manganese batteries ×2,
Continuous use: 800 hours (When using alkaline batteries)
Dimensions and mass 91.6 mm (3.61 in)W × 180.6 mm (7.11 in)H× 57.1 mm (2.25 in)D, 388 g (13.7 oz) (including batteries and holster)
Accessories Test Lead L9206 ×1, holster (attached) ×1, instruction manual ×1, R6P manganese battery ×2
