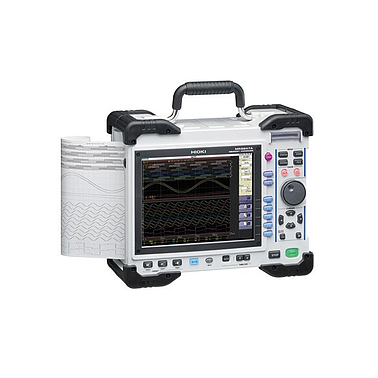

HIOKI MR8847A 存储记录仪(高速20MS / s,16通道)

  • 制造商: HIOKI
    Model: MR8847A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Channels:
- 8 analog input modules: 16 analog channels + 16 logic channels (standard)
- 5 analog input modules + 3 logic input modules: 10 analog channels + 64 logic channels (standard 16 channels + 48 channels in logic input modules)
Measurement ranges (20 div full-scale)
- 5 mV to 20 V/div, 12 ranges, resolution : 1/100 of range (using the 8966)
- 5 mV to 50 V/div, 5 ranges, resolution : 1/1 000 000 of range (using the MR8990)
- 200 mV to 50 V/div, 8 ranges, resolution : 1/1600 of range (using the U8794)
Max. allowable input: 400 V DC (using the 8966/8968), 500 V DC (using the MR8990), 1000 V DC (using the U8974)
Frequency characteristics (-3dB): DC to 5 MHz (using the 8966), DC (using the MR8990), DC to 100 kHz (using the U8794)
Time axis (Memory function): 5 µs to 5 min/div (100 samples/div) 26 ranges, External sampling (100 samples/div, or free setting), Time axis zoom: x2 to x10 in 3 stages, compression: 1/2 to 1/200 000 in 16 stages
Measurement functions: MEMORY (high-speed recording), RECORDER (real-time recording), X-Y RECORDER (X-Y real-time recording), FFT
Other functions: Waveform judgment (at Memory or FFT function)
Memory capacity:
- MR8847-51: Total 64 M-words (Memory expansion: none)
- 32 MW/ch (using 2 Analog channels), to 4 MW/ch (using 16 Analog channels)
- MR8847-52: Total 256 M-words (Memory expansion: none)
- 128 MW/ch (using 2 Analog channels), to 16 MW/ch (using 16 Analog channels)
- MR8847-53: Total 512 M-words (Memory expansion: none)
- 256 MW/ch (using 2 Analog channels), to 32 MW/ch (using 16 Analog channels)
Removable storage: CF card slot (standard) ×1 (up to 2GB, FAT, or FAT-32 format), SSD (128 GB, optional), USB memory stick (USB 2.0)
Printing: 216 mm (8.50 in) × 30 m (98.43 ft), thermal paper roll, Recording speed : Max. 50 mm (1.97 in)/s
Display: 10.4 inch TFT color LCD (SVGA, 800 × 600 dots)
Displayable languages: English, Japanese, Korean, Chinese
External interfaces: [LAN] 100BASE-TX (FTP server, HTTP server), [USB] USB2.0 compliant, series A receptacle ×1, series B receptacle ×1, (File transfer internal drive/CF card to PC, or remote control from PC)
Power supply:
- 100 to 240 V AC, 50/60 Hz (130 VA max., when using printer: 220 VA max.)
- 10 to 28 V DC (when using the optional factory-installed DC power unit 9784)
Dimensions and mass: 351 mm (13.82 in) W × 261 mm (10.28 in) H × 140 mm (5.51 in) D, 7.6 kg (268.1 oz) (main unit only)
Accessories: Instruction manual ×1, Measurement guide ×1, Application disk (Wave viewer Wv, Communication commands table) ×1, Power cord ×1, Input cord label ×1, USB cable ×1, Printer paper ×1, Roll paper attachment ×2, Ferrite clamp ×1


Details

Datasheet, Catalog
