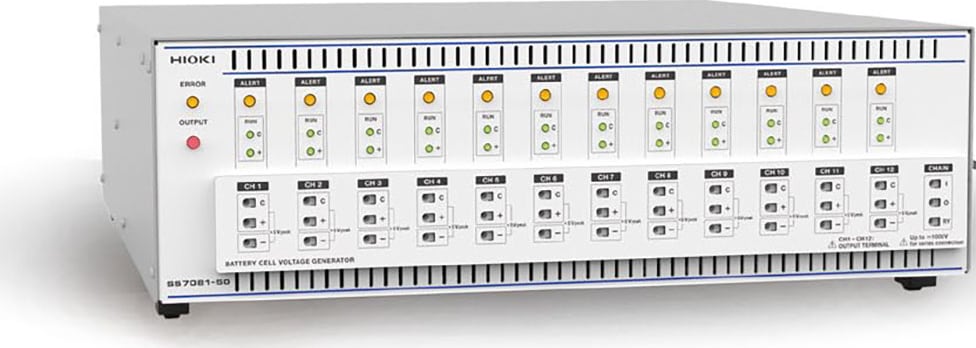

HIOKI SS7081-50 电池电压发生器

Number of channels : 12

Maximum in-series connections : In-series connections of instrument up to and including a

maximum in-series output voltage of 1000 V

Output range : DC voltage: 0.0000 V to 5.0250 V (set independently for all channels)

Maximum output current: ±1.00000 A (set independently for all channels)

Measurement range : DC voltage: -0.00100 V to 5.10000 V

DC current (2-range architecture): ±1.20000 A (1 A range)

±120.0000 μA (100 μA range)

Integration time : 1 PLC (50 Hz: 20 ms; 60 Hz: 16.7 ms) × number of smoothing

iterations (user-configured)

Voltage output accuracy : ±0.0150% of setting ±500 μV

Voltage measurement accuracy : ±0.0100% of reading ±100 μV

Current measurement accuracy : 1 A range: ±0.0700% of reading ±100 μA

100 μA range: ±0.0350% of reading ±10 nA

Interfaces : LAN

Power supply : Universal (100 V to 240 V AC), 50 Hz / 60 Hz

Dimensions and mass : 430 (16.93 in)W × 132 (5.20 in)H × 483 (19.02 in)D, 10.3 kg (363.3 oz.)

Accessories : User manual × 1, power cord × 1, rack frame × 1, disk with computer application × 1 (Available within the range of application specifications).
