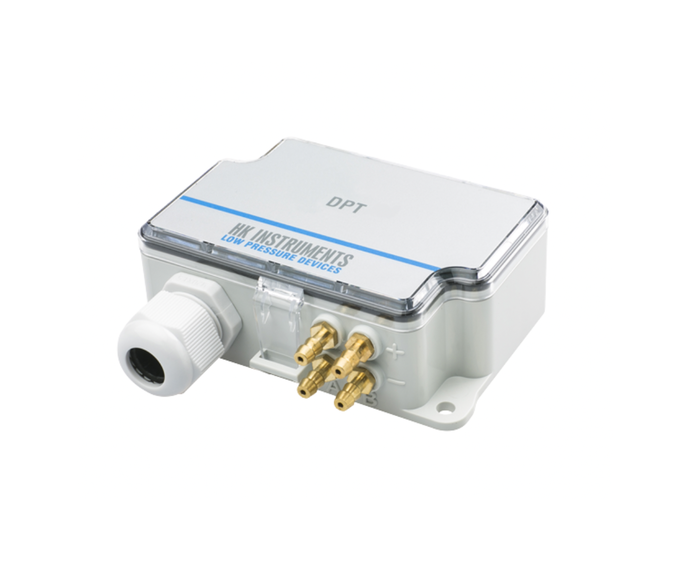

HK Instruments DPT-Dual-7000 差压变送器 (0...7000 Pa)

Measurement ranges (Pa): 0...7000 Pa

Accuracy (from applied pressure)(model 7000): Pressure < 125 Pa = 1.5 % + ±2 Pa; Pressure > 125 Pa = 1.5 % + ±1 Pa

Zero point calibration: by pushbutton

Measuring units: Pa, kPa, mbar, inchWC, mmWC

Supply voltage: 24 VDC ±10% / 24 VAC ±10%

Power consumption: < 1.0 W

Output signals (3-wire): 2 x 0...10 VDC or 2 x 0...5 VDC (selectable by jumper)

Operating temperature: -20...+50 °C

Response time: 0.8 / 4 s

Protection standard: IP54
