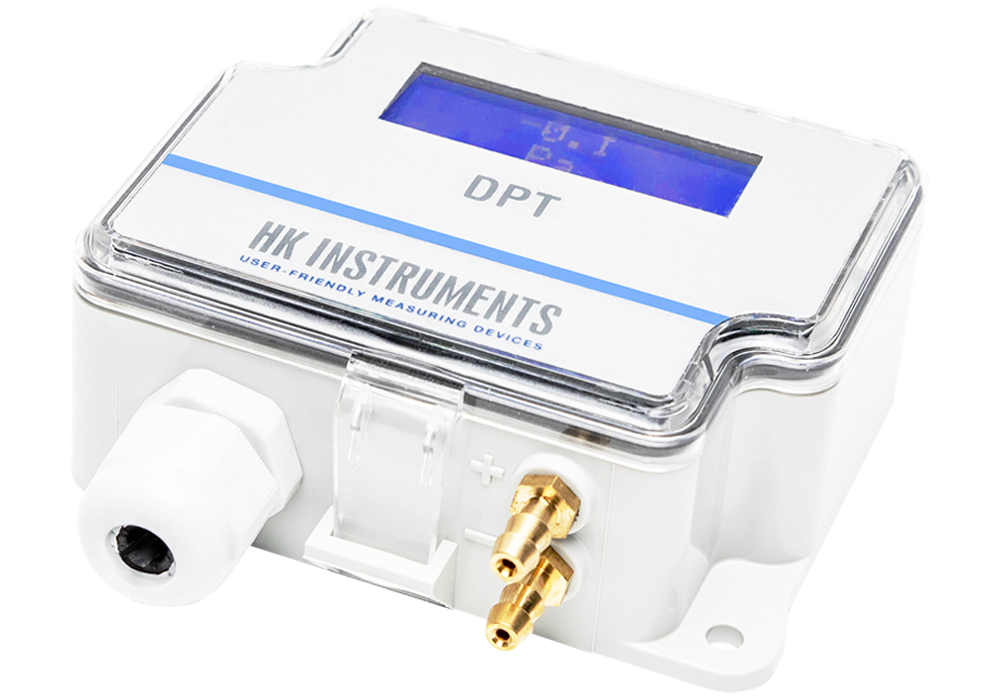

HK Instruments DPT-Priima-AZ-D 差压变送器 (~1000Pa; with AZ & display)

Measurement accuracy (from applied pressure): 0.4 % ±0.4 Pa

Measuring ranges (Pa): -25...+25 / -50...+50 / -100...+100 / -500...+500 / 0...25 / 0...50 / 0...250 / 0...1000

Zero point calibration: automatic with autozero element (-AZ) or by pushbutton

Measuring units: Pa, kPa, mbar, inchWC, mmWC, psi

Measuring element: MEMS, no flow-through

Supply voltage: 24 VDC ±10 % / 24 VAC ±10 %

Power consumption: < 1.0 W (< 1.2 W with output current 20 mA)

Output signals (3-wire): 0/2…10 VDC; 4…20 mA

Operating temperature: -5…50 °C

Response time: 0.4 / 8 s

Protection standard: IP54

With AZ & display
