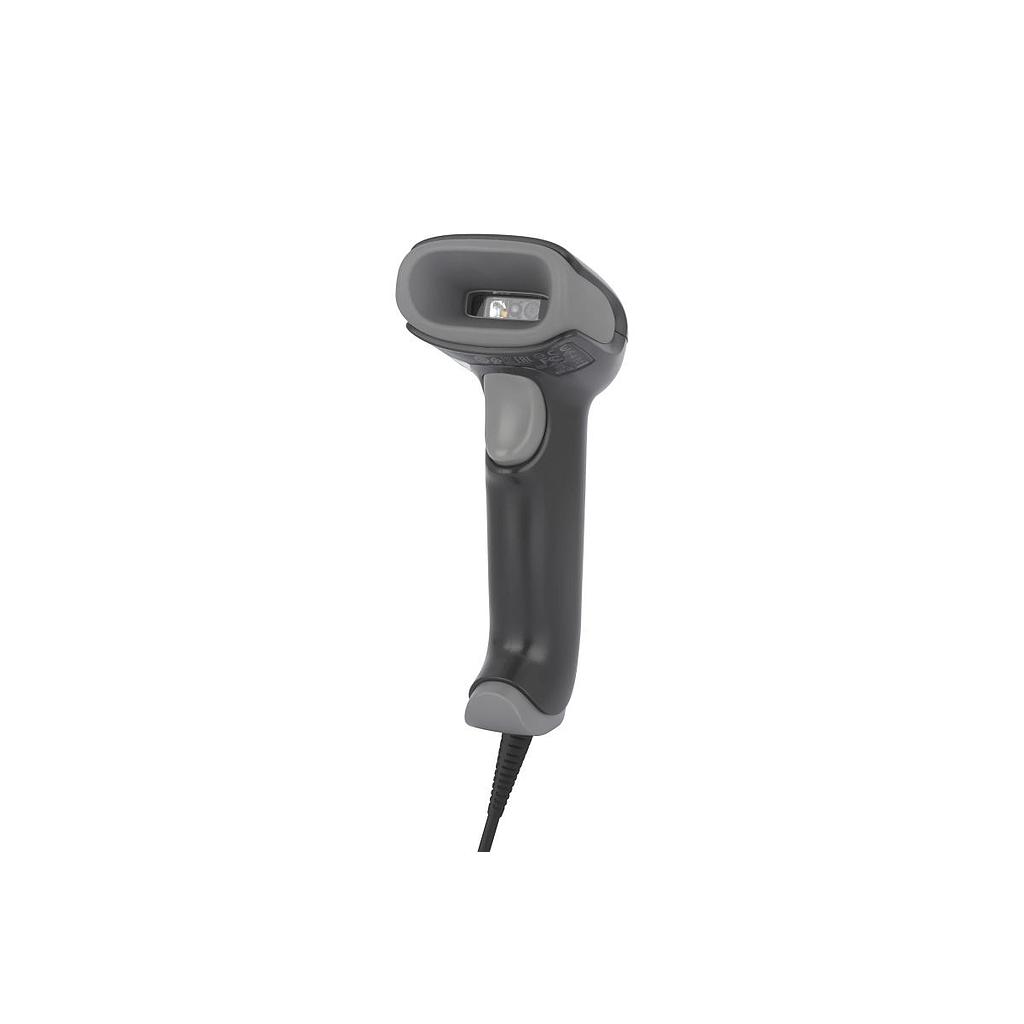

Honeywell Voyager XP 1470g 通用条码扫描仪 (1D/2D; Horizontal 39.2°; Vertical 27.4°)

Dimensions: (L x W x H): 62x169x82mm (2.4 in x 6.6 in x 3.2 in)

Weight: 130 g (4.6 oz)

Scanning performance:

    Scan Pattern: Area Image (1040 x 720 pixel array)

    Motion Tolerance: Up to 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus

    Scan Angle: Horizontal: 39.2° nominal; Vertical: 27.4° nominal

    Print Contrast: 20% minimum reflectance difference

    Roll, Pitch, Skew: ±180°, ±65°, ±70°

Decode Capabilities: Reads standard 1D, PDF, 2D, DotCode symbologies

Operating Power: 2 W

Input Voltage: 4 - 5.5 V DC

Host System Interface: USB, Keyboard Wedge, RS-232, RS485
