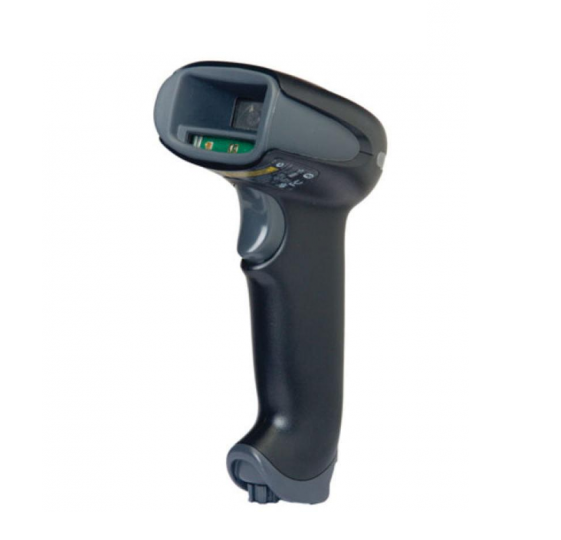

Honeywell 1900 GHD 二维码扫描枪

• Dimension (LxWxH): 104 x 71 x 160 mm

• Weight: 147g (5.2 oz)

• Input Voltage: 4 VDC to 5.5 VDC

• Operating Power: 2.3W (450mA @ 5 VDC)

• Standby Power: 0.45W (90mA @ 5 VDC)

• Host System Interfaces: USb, Keyboard, RS232, IBM 46xx (RS485)

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -40°C to 70°C

• Humidity: 0% to 95% relative humidity, non-condensing

• Light Levels: 0 to 100,000 lux

• Scan Pattern: Area Image (838 x 640 pixel array)

• Motion Tolerance: Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus

• Scan Angle:

HD Focus: Horizontal 41.4°; Vertical: 32.2°

SR Focus: Horizontal: 42.4°; Vertical: 33°

ER Focus: Horizontal: 31.6°; Vertical: 24.4°

• Symbol Contrast: 20% minimum reflectance difference

• Pitch, Skew: 45°, 65°

• Decode Capability: Reads standard 1D, stacked, 2D àn postal symbologies, limited OCR font reading
