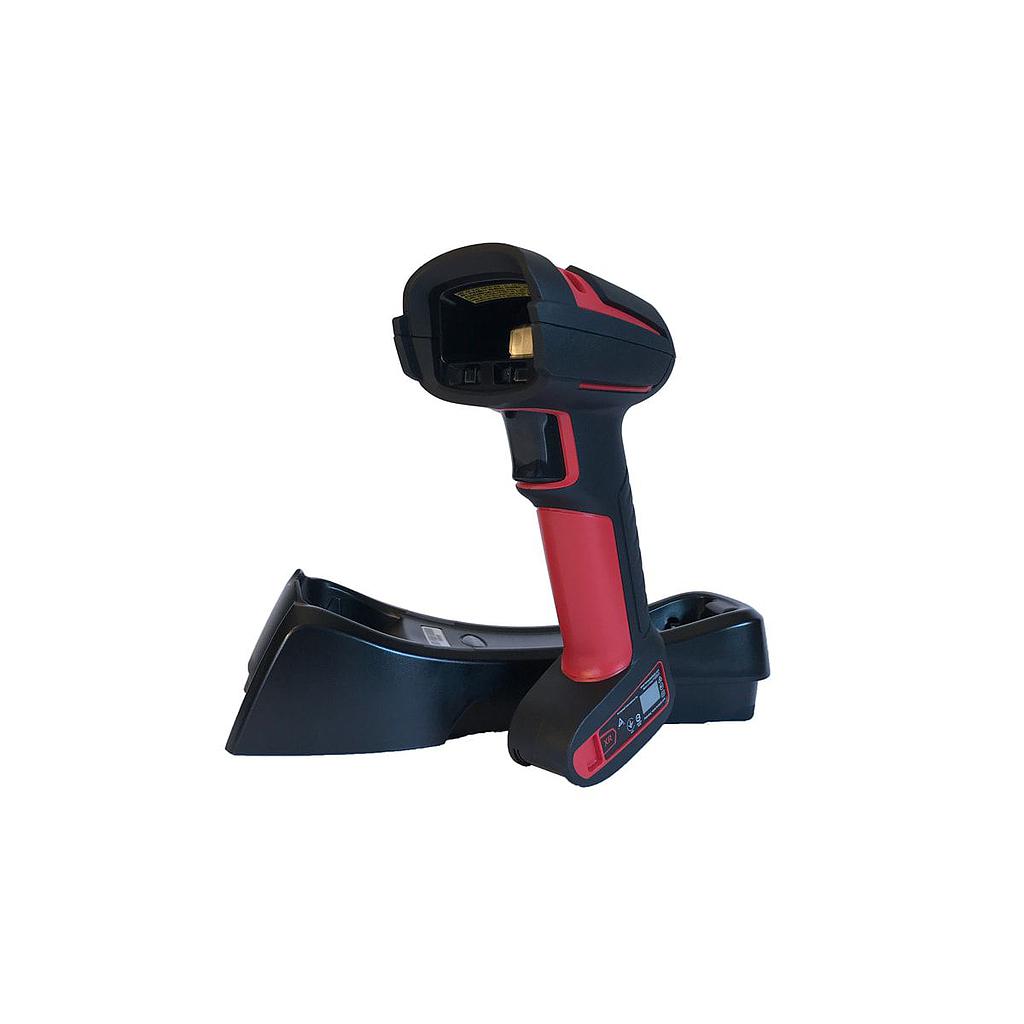

Honeywell 1991iXR 超坚固的影像式扫描器 (1D/2D, XR, Area Image)

Dimensions (L x W x H): 192 mm x 76 mm x 100 mm (7.6 in x 3.0 in x 3.9 in)

Host System Interfaces: USB, Keyboard Wedge, RS-232 TTL

Scan performance:

    Scan Pattern: Area Imager (1280 x 800 pixel array)

    Motion Tolerance: Up to 4500 mm/s (177 in/s)

    Scan Angle: Horizontal: 40°, Vertical: 30°

    Print Contrast: 20% minimum reflectance difference

    Roll, Pitch, Skew: -360°, 45°, 65°

    Decode Capabilities: Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code and OCR symbologies

Input Voltage: 4.0 VDC to 5.5 VDC

Operating Power – Cordless: 5 W (1000 mA @ 5 VDC)
