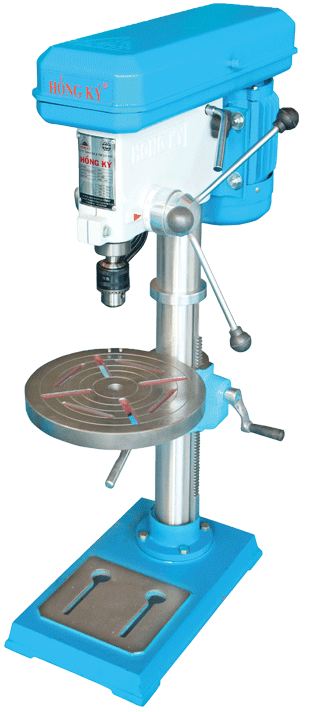

Hong Ky KT12 钻床
制造商: Hồng Ký Model: KT12 来源: Vietnam 保障: 12 Month - 报价要求
- 联系
Drill route 80 mm
Distance from bit to drilling plate 420 mm
Distance from bit to cyclinder 182.5mm
Drill bit diameter 3-16mm
Diameter of cylinder 75
Cone hole to fit the drill drive 0
Speed stage 450-700-1100-1530
Motor 1/2 HP- 1 Phase-4P
Machine size 700X350X1200
Machine weight 90kg
Option: Can choose motor 3 phase
- All the machine parts are processed under fully automatic technology ( CNC ) of Japan
- The accuracy between splines (grooves) is 0.05 mm(5/100)
- All the machine parts are precisely grinded 0.005 mm ( 5/1000)
- The set of axis is made of S45C steel that helps to increase the longevity
