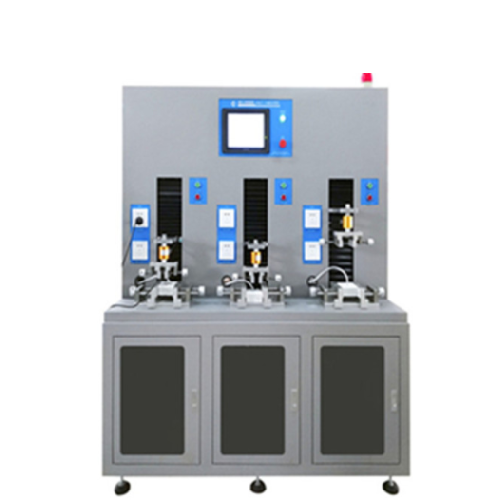

Hongdu HD-1220HQ 轻触式USB插头测试仪 (0-500N)

Test station: vertical independent three-station

Drive mode: PLC+ touch screen + servo motor

Plug and pull speed: 0-400mm/min

Force range: 0-500N

Maximum stroke displacement: 200mm (can be set)

Stroke displacement accuracy: 0.1mm

Fixture left and right stroke: 0-150mm

Power-on time: 0~999S can be set

Power off time: 0~999S can be set

Number of tests: 0~999999 times can be set

Time accuracy: ±0.1S

Detection mode: There is a load and mechanical life function selection

Frequency accuracy: ±1 time

Plug-in force monitoring: monitor the strength during the insertion and removal process, if the device exceeds the limit threshold, the equipment is stopped and protected

Output voltage: Each station is equipped with a five-hole power supply for the sample (socket) to take power

Power supply: AC 220V ± 10%, 50Hz 10A
