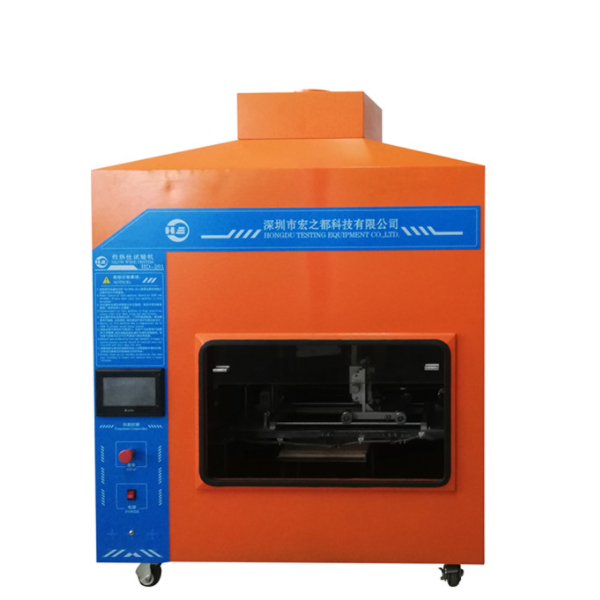

Hongdu HD-201 电热丝试验机 (1000W)

Input power: 220VAC±10%, 50/60Hz

Fuse: 10A/250VAC

Output power: 1000W

Temperature measurement accuracy: 500℃~750℃ ±10℃, 750℃~960℃ ±15℃ (After the temperature is stable for 2 minutes)

Hot time (TA): 0~999.9s can be set arbitrarily, set to 30s according to the standard.

                       Accuracy: 0.1S

Lightning time (TI): Controller internal timing, man-machine display, touch button control,

                               Accuracy: 0.1S

Extinction time (TE): Controller internal timing, man-machine display, touch button control,

                                  Accuracy: 0.1S

Temperature probe material: Φ0.5~0.55mm/Φ1 nickel chrome armor (K type)

                                              Imported thermocouple

Glow wire presses the sample: 1±0.2N

Glow wire and sample relative displacement: 7mm

Dimensions: 1505×1205×1900 (Width × depth × height)

Weight: approximately 95 Kg
