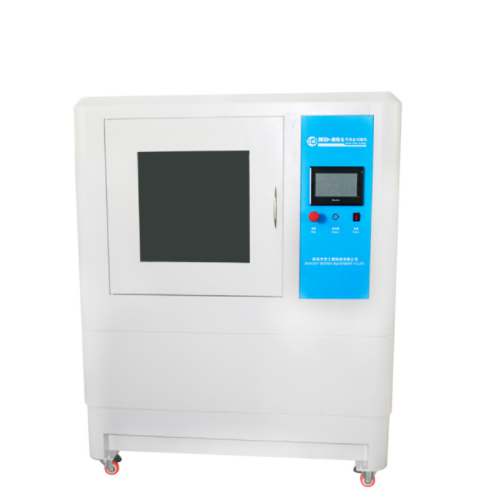

Hongdu HD-201A Glow-Wire Tester (1000W)

Input power: 220VAC±10%, 50/60Hz

Fuse: 10A/250VAC

Output power: 1000W

Temperature measurement accuracy: 500℃~750℃ ±10℃, 750℃~960℃ ±15℃

                                                            (After the temperature is stable for 2 minutes)

Hot time (TA): 0~999.9s can be set arbitrarily,

                       set to 30s according to the standard. Accuracy: 0.1S

Lightning time (TI): Controller internal timing, man-machine display, touch button control, Accuracy: 0.1S

Extinction time (TE): Controller internal timing, man-machine display, touch button control, Accuracy: 0.1S

Temperature probe material: Φ0.5~0.55mm/Φ1 nickel chrome armor (K type) Imported thermocouple

Glow wire presses the sample: 0.95±0.1N

Glow wire and sample relative displacement: 7mm

Dimensions: 1505×1205×1900 (WxDxH)

Weight: 95Kg
