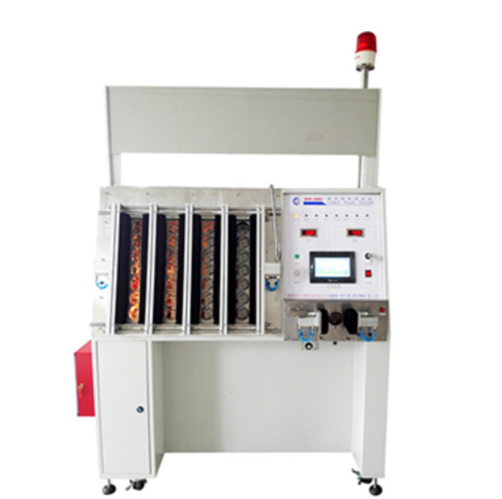

Hongdu HD-28C 插头综合试验机 (500VA)

Voltage test

- The output voltage: External high pressure: (L, N, E With the skin) 0-5KV Adjustable 2mA (fixed)

                  Interelectrode high voltage: 0-5KV Adjustable

- Rated power: 500VA

- Waveform: 50/60Hz AC sine wave

- Voltage calibration: ±2% Within

Failure judgment

- Leakage current setting (Reference value): 0.5/1/3/5/10 mA

- Judgment accuracy: ±5%

Insulation resistance

- The output voltage: 500VDC

- Voltage calibration: ±10%

- Reference set point: 5/50/100MΩ

- Judgment accuracy: ±10%

- Indicator header (0-200 MΩ): ±10%

- Measuring range: 0-∞
