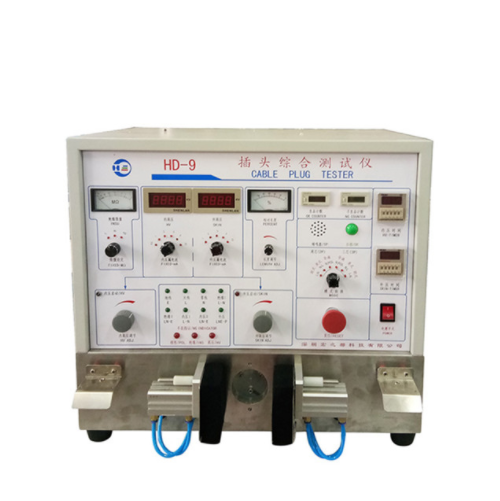

Hongdu HD-9 Plug Comprehensive Tester (0-5KV, 0.5~10mA)
制造商: Hongdu Model: HD-9 保障: 12 Month - 报价要求
- 联系
High-pressure test
- The output voltage: External high pressure: 0-5kV, adjustable
Interelectrode high voltage: 0-5KV, adjustable
- Rated power: 500VA
- Wave shape: 50/60Hz AC sine wave
- Voltage calibration accuracy: ±5% Within
- Indicator header voltage: Switch: Zero level shift
Ratio: 1:25
Accuracy: ±3%
- Leakage current setting (Reference value): 0.5\1\3\5\10mA
- Current judgment accuracy: ±5%
Insulation test
- The output voltage: 500VDC
- Voltage calibration accuracy: ±5%
- Reference set point: 5/50/100MΩ
- Judgment accuracy: ±10%
- Indicator head accuracy: ±10%
- Measuring range: 0-200 MΩ
Thử nghiệm phân cực: Thích hợp cho thử nghiệm dẫn điện phân cực hai lõi, ba lõi
Kiểm tra độ dẫn điện: Thích hợp cho kiểm tra tính liên tục không phân cực hai lõi, ba lõi
