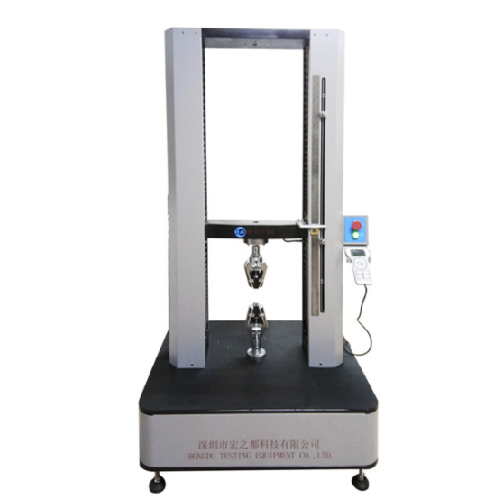

Hongdu HD-ECT-30K 拉力测试仪 (0-600mm, 30KN/50KN)

Input power: AC220VAC±10%, 5A, 50/60HZ

Output power: 750W

Accuracy level: 1 level

Maximum load value: 30KN/50KN

Test machine resolution: Maximum load 1/250000, The entire resolution is unchanged

Effective force range: 0.4%~100%

Force measurement accuracy: ±1%

Test speed range: 0~500mm/min

Displacement measurement accuracy: ±1%

Deformation measurement range: 0-600mm

Deformation measurement accuracy: ±1%

Motor: Servo motor

Test bench return function: Manual or automatic two options

Dimensions: 542×426×1850 (Width × depth × height)

Weight: Approximately 400kg
