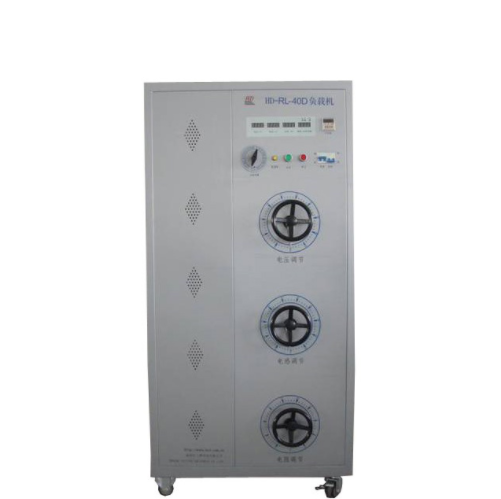

Hongdu HD-RL-40D Load Test Machine (AC 1A~40A, 40V~290VC)

Input power: 220VAC±10%, 50/60Hz

Input current: AC 60A

The output voltage: AC 40V~290VC continuously adjustable

Output current: AC 1A~40A

Power factor: Ф0.3~Ф1.0

Voltage indication accuracy: ±(0.4% reading +0.1%Range+1 word)

Current indication accuracy: ±(0.4% reading +0.1%Range+1 word)

Power factor meter accuracy: ±(0.004 +0.001/reading+1word)

Uninterrupted current output time: 30second

Dimensions: 860×520×1800mm (Width × depth × height)

Weight: approximately 285 Kg
