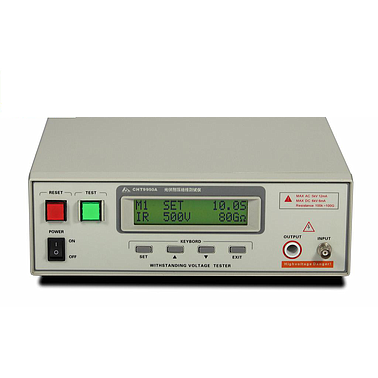

Hopetech CHT9912 程控交直流耐压测试仪(100VA,3%)

-Display: 95mm*20mm monochrome LCD
-Test Parameters: leakage current/insulation IR
-Voltage Resolution: 1V
-Voltage Accuracy: 3%
-Frequency: 50Hz/60Hz
-Output AC: 0.5kV-5kV; 12mA
-Output DC: 0.5kV-6kV; 6mA
-Current Resolution: 1uA
-Current Accuracy: 3%+2 counts
-Voltage Ramp Up Time: 0.1s-999.9s
-Test Time: 0.1s-999.9s
-Arc Test Function: 1~9 level
-Memory Group: 3 groups
-Interface: PLC interface(Optional), RS232C (Optional)
-Power Supply:
+Voltage:198V-240V AC
+Frequency:47Hz-63Hz
-Pmax: 100VA
-Dimensions: 374mm*280mm*99mm(L*W*H)
-Weight: 7.5kg

Details
CHT99XX Series combines AC voltage withstand, DC voltage withstand and insulation resistance (IR) function tests. It has 10V~6kV AC/DC voltage output and 100k~100GΩ insulation resistance.

CHT99XX also combines both Arc detection and power detection functions. All 3 test modes are programmable and each mode can be combined to compare.
With the optional RS485 interface, CHT99XX can be easily implemented instrument network through MODBUS protocol.

FEATURE:
Voltage rise-time is less than 0.2s
Insulation resistance test-range is 100KΩ ~ 100GΩ
Measuring end test has grounding mode and floating mode
Built-in 3 group test modes, each mode can be combined to compare
Various interface configuration suitable for automated test system

Model

CHT9910

CHT9912

CHT9922

CHT9950A

Display

95mm*20mm monochrome LCD

Test Parameters

leakage current/insulation IR

Voltage Resolution

1V

Voltage Accuracy

3%

Frequency

50Hz/60Hz

Output

AC

0.5kV-5kV

0.5kV-5kV

0.5kV-5kV

0.5kV-6kV

12mA

DC

——

0.5kV-6kV

——

6mA

Current Resolution

1uA

Current Accuracy

3%+2 counts

Voltage Ramp Up Time

0.1s-999.9s

Test Time

0.1s-999.9s

Arc Test Function

1~9 level

Insulation IR Range

——

——

100kΩ~100GΩ

100kΩ~100GΩ

Voltage Output

——

——

0.5kV~1.0kV

0.5kV~1.0kV

Memory Group

3 groups

Interface

PLC interface(Optional), RS232C (Optional)

Power Supply

Voltage:198V-240V AC Frequency:47Hz-63Hz

Pmax

100VA

Dimensions

374mm*280mm*99mm(L*W*H)

Weight

7.5kg
