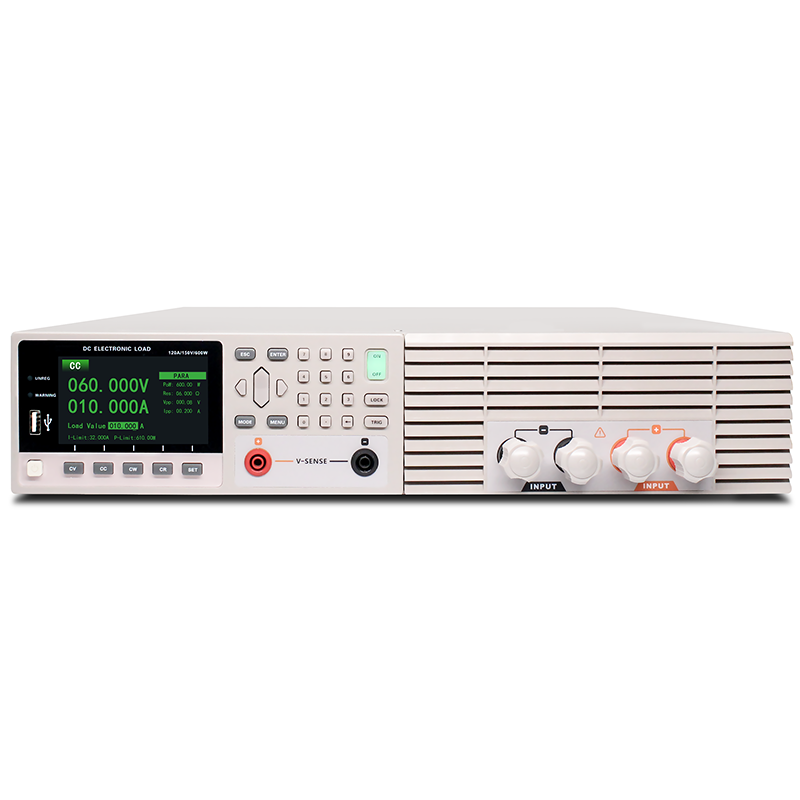

Hopetech HT8601B 可编程直流电子负载 (500V, 30A, 600W)

Input voltage/Current:

       50V/3A

       500V/30A

Input power: 600W

Min. operation voltage: 4V@30A

Min rise time@ FS current: 25us

CV mode

Range/Resolution:

       50V/0.7mV

       500V/7mV

Accuracy: ±(0.03%+0.02%FS)

CC mode

Range/Resolution:

       3A/0.04mA

       30A/0.4mA

Accuracy: ±(0.03%+0.02%FS)

CR mode

Range: 0.1Ω~167kΩ

Resolution: 16Bits

Accuracy: ±0.1%

CP mode

Range: 600W

Resolution: 16Bits

Accuracy: ±（0.1%+0.1%FS）

Dynamic mode

Ta＆Tb: 10us~50s

Min.resolution: 10us

Min. rise time: 3A/us

Read-back voltage

Range/Resolution:

       50V/0.3mV

       500V/3mV

Accuracy: ±(0.015%+0.01%FS)

Read-back current

Range/Resolution:

       3A/0.02mV

       30A/0.2mA

Accuracy: ±(0.03%+0.02%FS)

Read-back ripple

Range(U/I): 500V/30A

Bandwidth: 10Hz~250kHz

Accuracy: ±0.1%

Protection range

Over-power protection: 630W

Over-current protection: 32A

Over-voltage protection: 525V

Over-temperature protection: ≒85℃

Specification

Dimension (L*W*D): 483mm*428mm*106mm

Gross Weight: 19.5Kg
