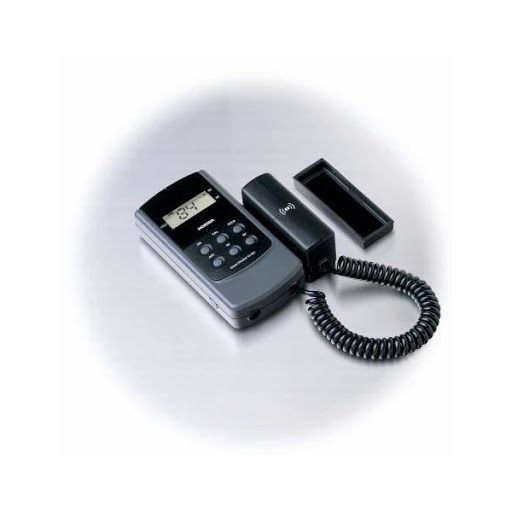

HORIBA IG-331 光泽计

Measurement mode
Measuring angle of 60 degrees: incident and receiving angle 60 degrees

Measuring angle of 20 degrees: incident and receiving angle 20 degrees

Measuring area  3 x 6 mm oval shape at 60 degree measuring angle  3 x 4 mm oval shape at a measuring angle of 20 degrees

LED light source (wavelength: 890 nm)

Probe  SPD (silicone photodiode)

Measuring range 0 - 100

Display range 0 - 199 (resolution: 1)  +/- 5% repeatability over the full +/- 1 digit measuring range

Power source: Dry battery A3 x 4

Battery life: More than 50 hours

Operating temperature 10 ~ 40oC

Size  Main body: 140 (W) x 75 (H) x 34 (D)

Optical sensor: 88 (R) x 30 (C) x 45 (D)

Weight Approximately 350 g (including batteries)

Additional functions

+ Automatic calibration

+ Auto power off

+ Keep screen displayed  Display exceeded scale

+ Battery status
