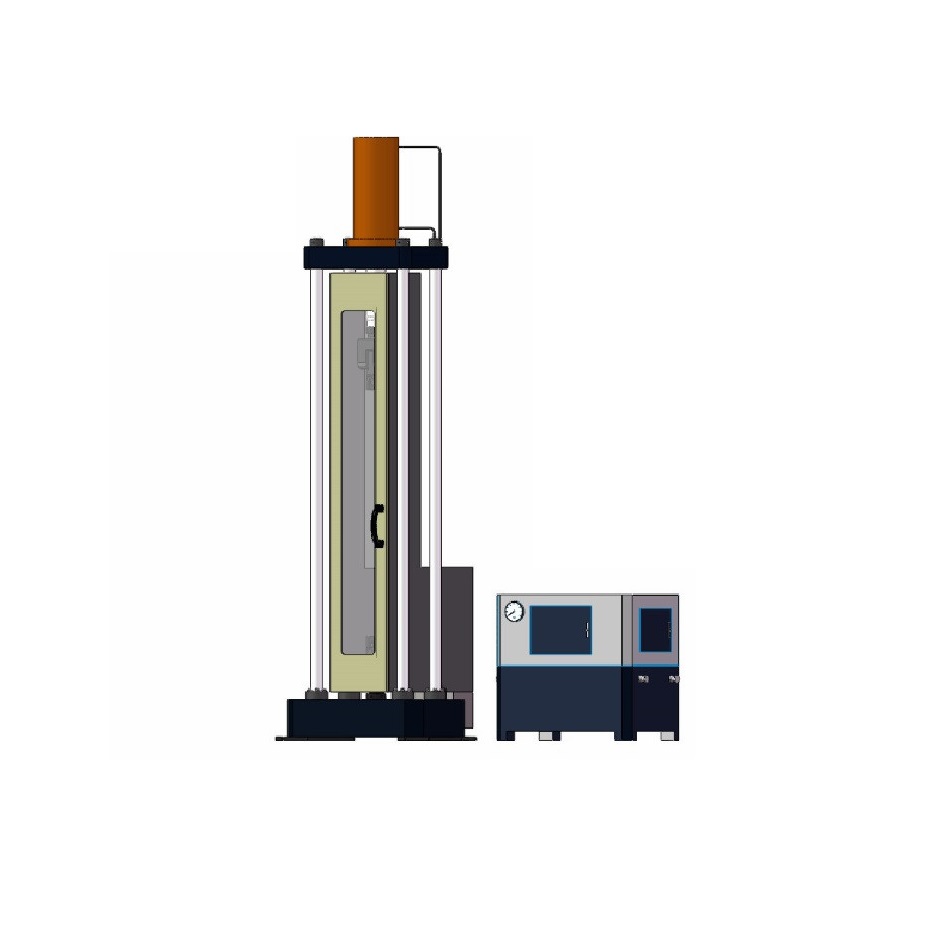

HST HST-100T Insulator Thermal-mechanical Testing Machine (10~1000kN)

Max. Load capacity(kN): 1000

Range of test force measurement: 10~1000

Accuracy of test force: ±0.5%

Resolution of displacement measurement: 0.005

Displacement measurement accuracy: ±0.5%

Deformation resolution: 0.001

Maximum displacement of displacement: 600

Max. Tensile space(mm): 2400

System pressure(MPa): 25

Deformation measurement accuracy: ±0.5%

Effective distance between columns: 900×630

Main engine size: 1598×1248×5447

Host weight: 9000kg

Hydraulic source weight (Kg): 800
