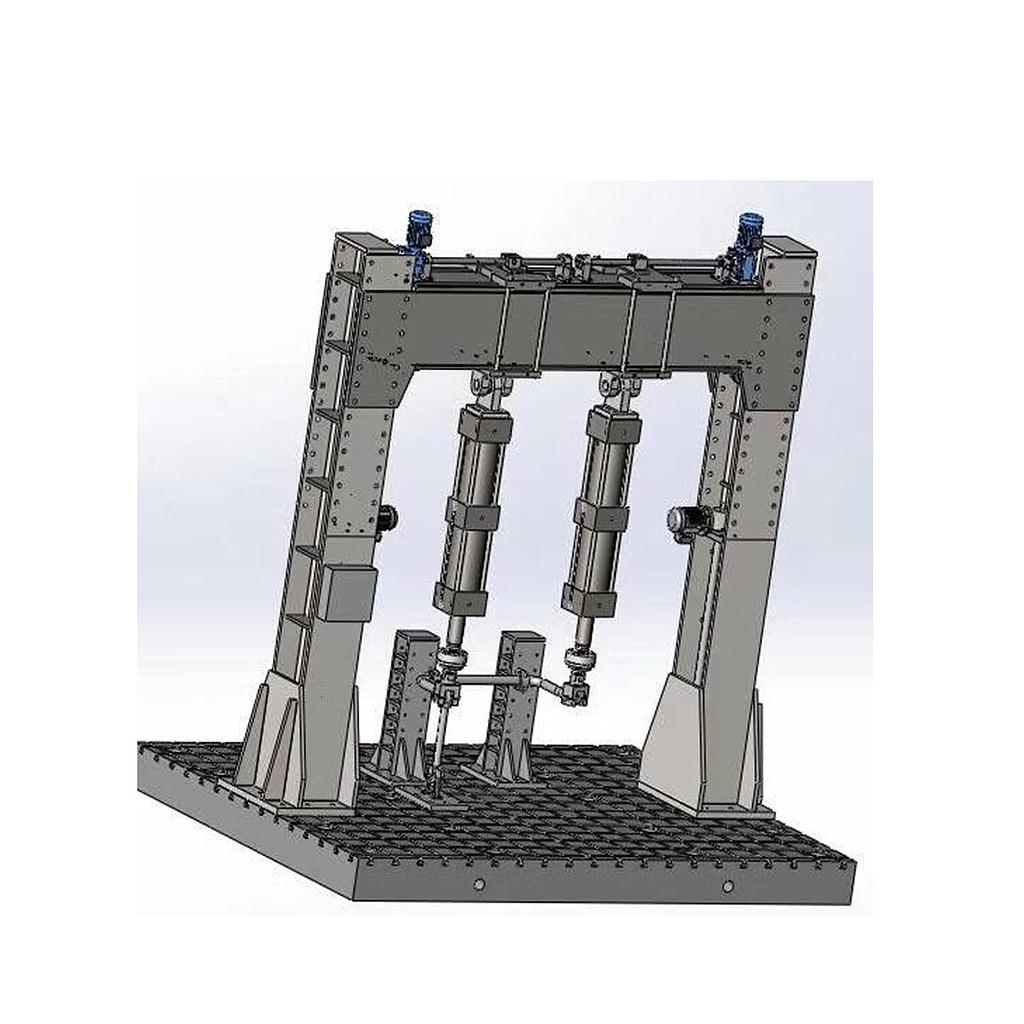

HST HST-HNP10 Torsion fatigue testing machine for automobile transmission shaft (± 10KNm)

1. Maximum static torque: ± 10KNm, calibrated according to 1, 2, 5, 10 divisions:

The accuracy of the indicated value is ± 1% from each point of 20% FS of each file.

2. Output speed: 0-130 degrees / min.

3. Maximum rotation angle of the loader: unlimited.

4. corner resolution: 1 point.

5. Photoelectric encoder specifications: 5000 lines / rev.

6. The adjustment range of the specimen length is 50-1500mm (or determined according to the user's specimen size).
