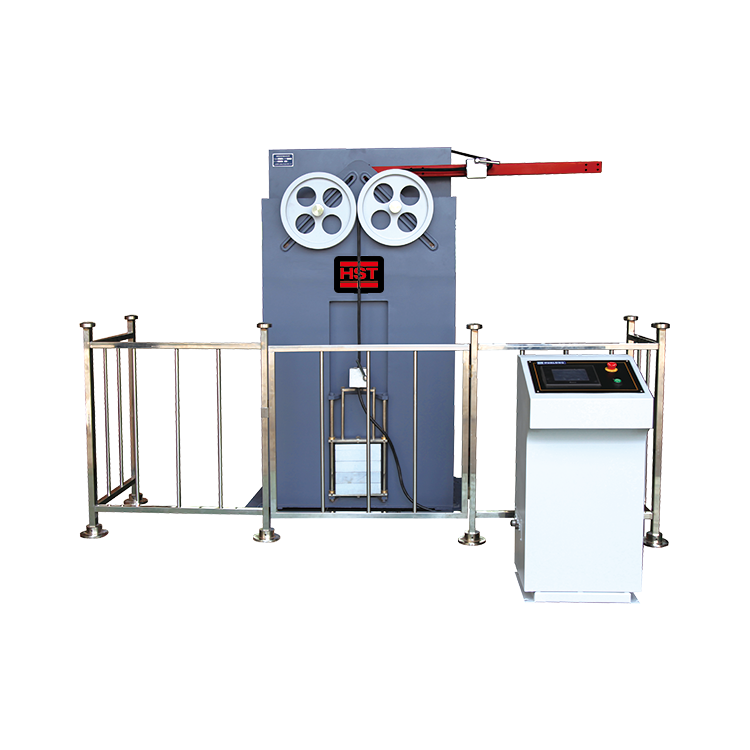

HST GWQ-1000 Optical Fiber Cable Repeated Bending Testing Machine (±90°)

Application: intended to establish the ability of a fiber optic cable to withstand repeated bending (cyclic flexing).

Bending angle: ±90° degree

Max. bending cycles: 1 - 9999

Frequency range: 10 - 30 cycles/min

Bending radius (mm): 25, 50, 75, 100, 150, 500 (others upon request)

Mass of weights for applying tension: Weight structure 27.5kg, 3 pieces of 5kg weight increment, 1 piece of 2.5kg weight increment.

Dimensions (L*W*H)

Working frame: 3,000*720*2,500 mm

Control console: 400*300 * 800 mm

Power:  3-phase 4-wire, 50Hz, 1 kW.
