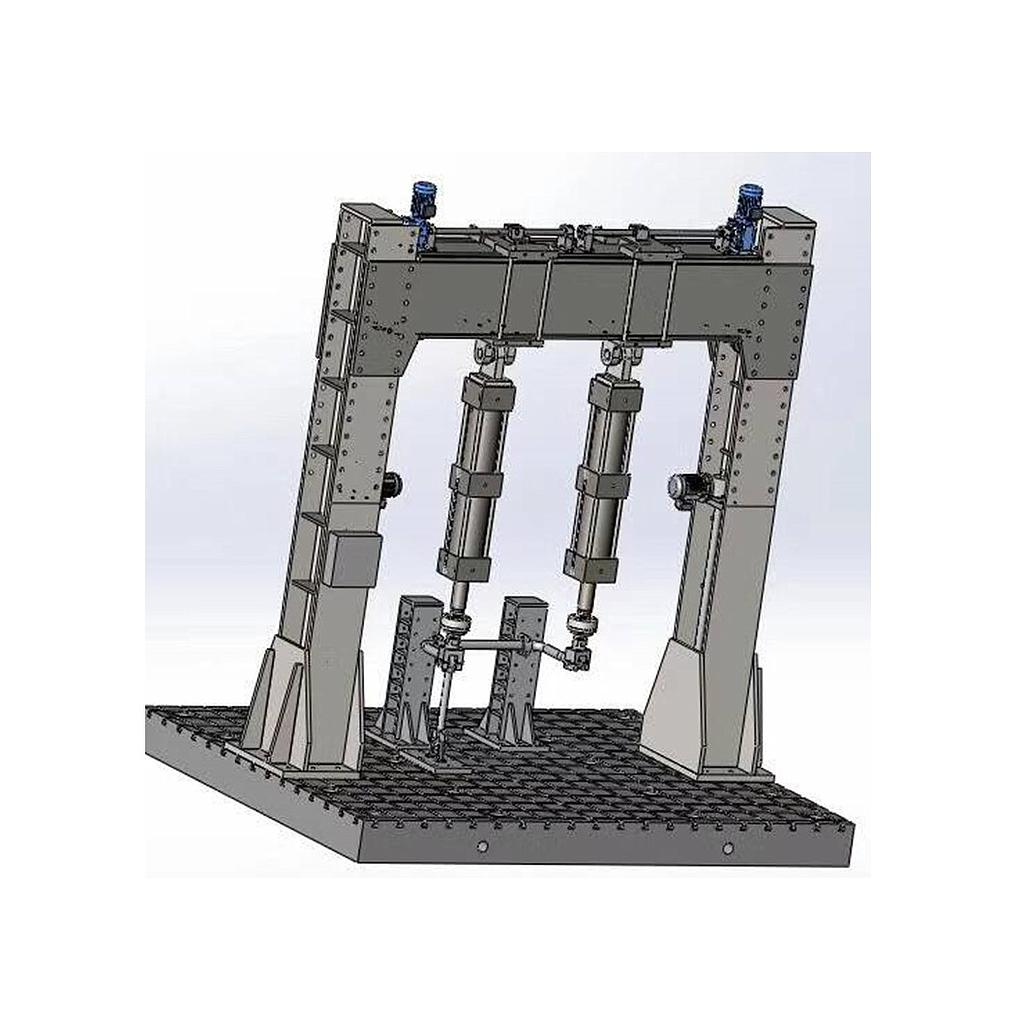

HST HMP800-2000 钢绞线锚接头疲劳试验机 (5000kN)

Maximum working pressure of the system: 19 / 38MPa

Maximum static test force of the system:  250/500/1000/2000/2500/3000/4000 / 5000kN × 2

Maximum dynamic test force of the system: 250/500/1000/2000/2500/3000/4000 / 5000kN × 2

System load indication accuracy: ≤ ± 1%

> 1000kN actuator main technical parameters:

Maximum static test force: 1000kN

Accuracy:: 20% FS from each point ± 1%

Maximum dynamic test force: 1000kN

The dynamic indication fluctuation: ≤ ± 2

Operating frequency range: 2-8Hz, infinitely adjustable

Counter maximum capacity: 1 time / rev, 99999999

Pulsator displacement: 0-1600mL / time

Pulsator main motor power: 11/22 / 45kW
