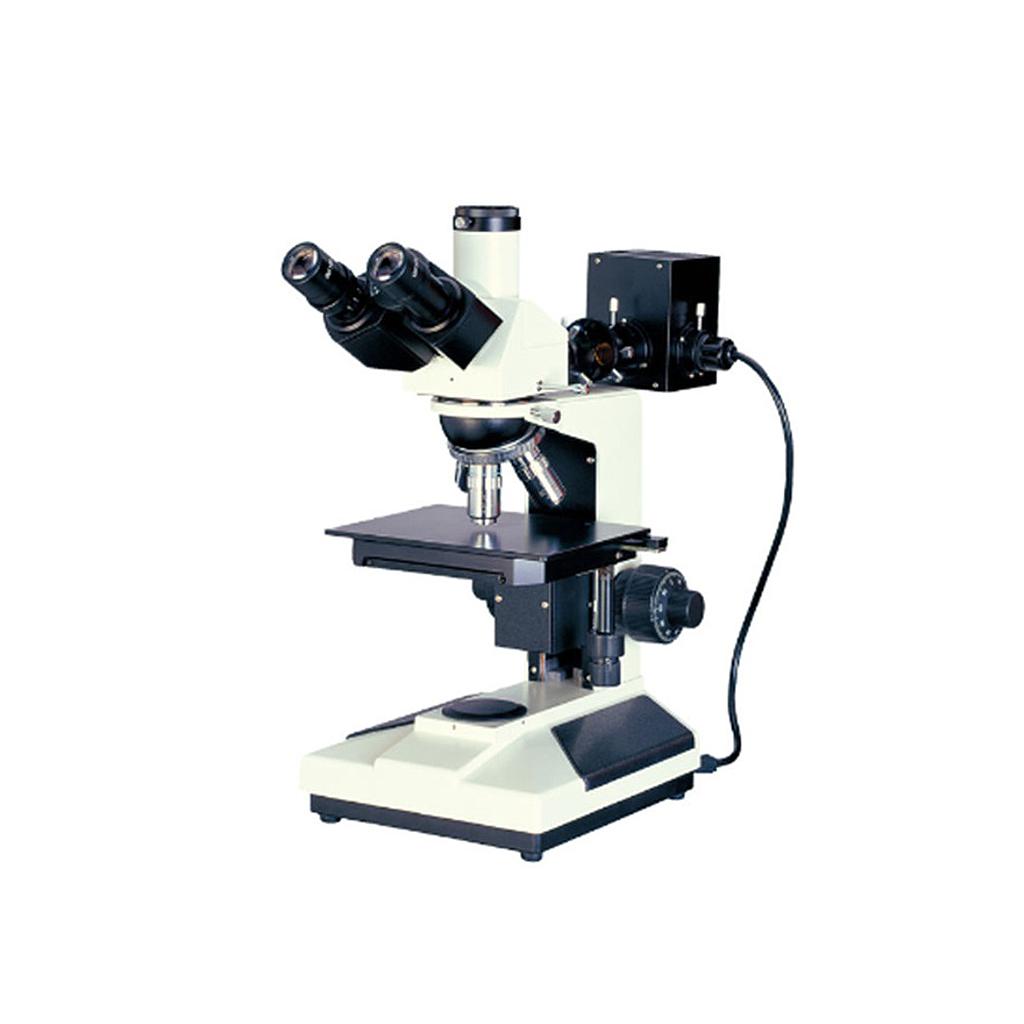

HST HST-7000 Metallographic Microscope (WF10X(Φ18mm))

Application: used for microscopic observation of opaque objects


Eyepiece: Wide field WF10X(Φ18mm)

Objective

Long achromatic objective lens (no cover glass) PL 5X/0.12

Long achromatic objective lens (no cover glass) PL L10X/0.25

Long achromatic objective lens (no cover glass) PL L40X/0.6

Long achromatic objective lens (no cover glass) PL L60X/0.75

Observation tube: Compensation Free Trinocular, 30° tilt, (built inspection polarizer, can be switched)

Lighting system: 6V 20W, Halogen lamp, brightness can be adjusted

Epi-illumination system: Epi-illuminator with optical measurement, aperture diaphragm, polaroid. With frosted glass; yellow, green and blue color filters basic configuration

Focusing mechanism: Coaxial coarse focus, Micro-grid value:2μm, Coarse dynamic elastic adjustable, with lock and limit device

Converters: Four holes (Backward ball bearing inner locating)

Stage: Double mechanical movable (size: 185mmx140mm, moving range: 75mmx50mm)
