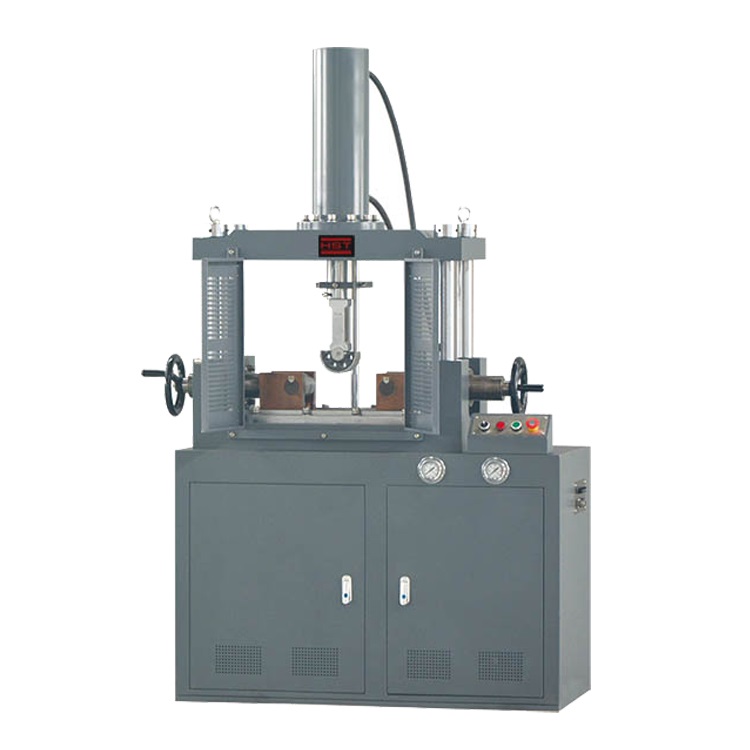

HST HSW-300A Bending Test Machine (300kN, 0-180°)

Maximum thrust: 300kN

Working operation: 300mm

Max working pressure: 25Mpa

Bending angle range: 0-180°

Bending circle sample diameter: Φ6-Φ50mm

Bending head diameter: Φ6-Φ128mm

Maximum distance of rollers: 300 mm

Cylinder loading speed: About 120mm/min

Main engine dimensions: 1200 mm×550 mm×2000 mm

The engine power: 1.1kW

The host weight: About 1100 kg
