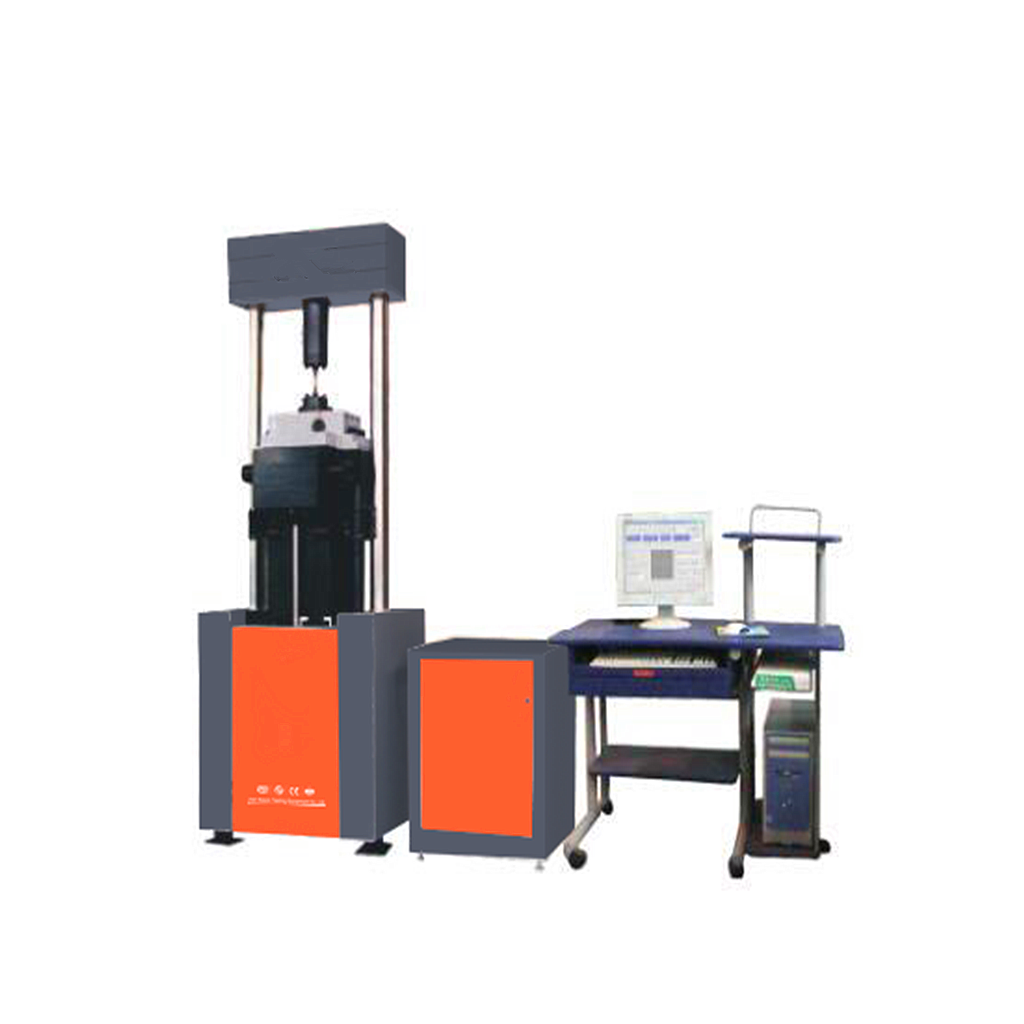

HST PLG-100C 高频疲劳试验机 (±100kN, 50~300hz)

Frequency: 50~300hz

Load capacity (kN): ±100

Load capacity for dynamic (peak value) (kN): 50 or 70

Relative error of static load: ≤±1%

Power: 300VA

Load 0.5%F-S fluctuation

Dynamic: 0.5%F-S

Static: 0.5%F-S

Max. distance between grips(mm): 800

Max. distance between columns (mm): 500

Dimension(mm)

Load frame: 800*700*3100

Control cabinet: 600×600×1200

Weight(kg)

Load frame: 2750

Control cabinet: 70

Optional: high temperature furnace and high temperature extensometer, fatigue crack rate test;
