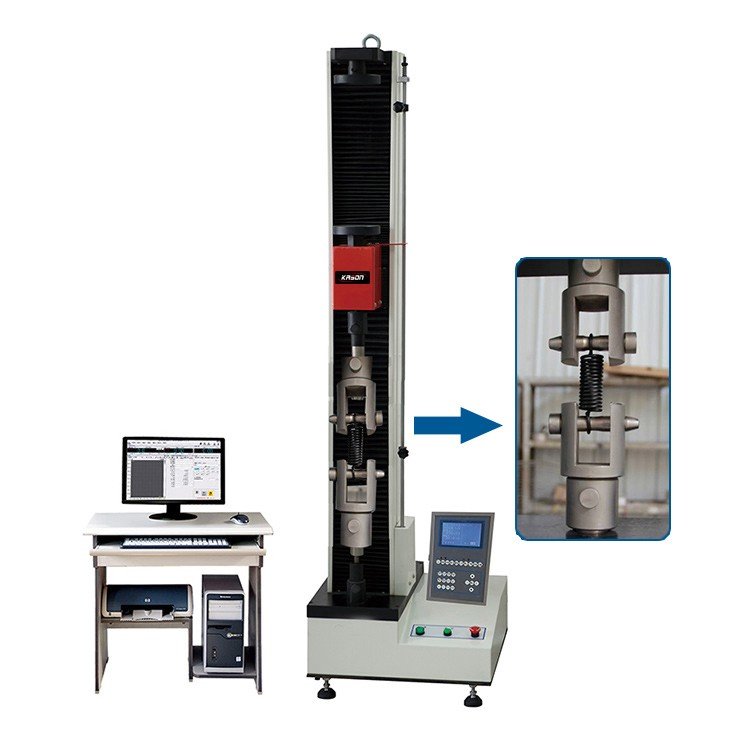

HST TLW-1 Single Colum Automatic Spring Tensile and Compression Testing Machine (1KN)

Application: used for tension spring, compression spring, saucer reed, tower spring, leaf spring, clip spring, flat spring, cpmposite spring,gas spring, mould spring, deformed spring and other precision spring tensile, compression, disp lacement and rigidity test and analysis.

Max. Test Force: 1kN

Structure: Single Colum Type Double space models

Control Method: Digital display/computer control

Load Accuracy: Class1/Class0.5

Load Range: 2%~100%F•S

Test force relative error value: ≤±1%%

Displacement relative error value: ≤±1%

Displacement display resolution: 0.01mm

Deformation indication error: ≤±(50+0.15L)um

Speed adjustment range: 0.01-500mm/min (stepless speed)

Speed relative error: ≤±1%

Tensile test space: Standard 600mm Heightening 800mm

Compression test space: Standard 600mm Heightening 800mm
