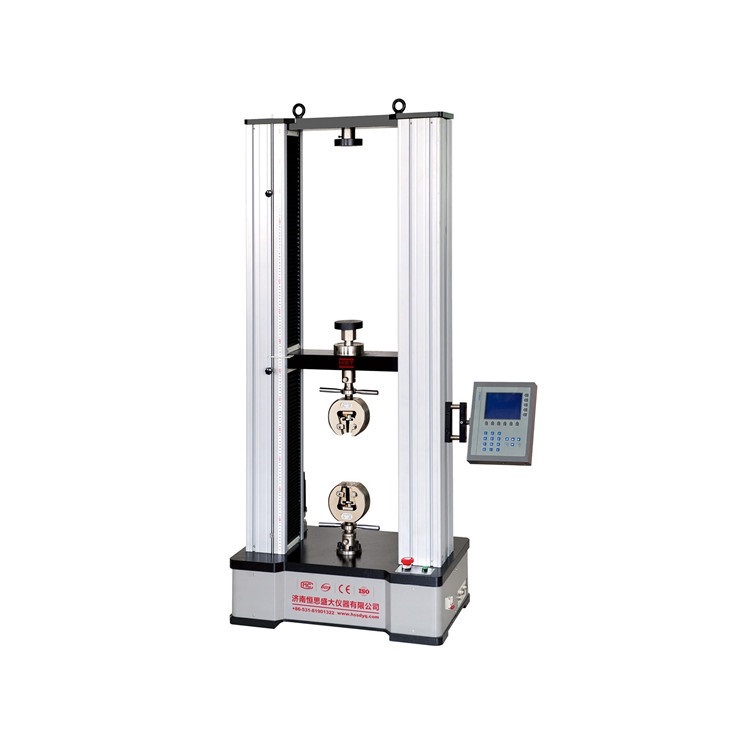

HST WDS-10 数显电子通用试验机 (10kN,AC220V)

Max. Load(kN): 10

Load accuracy: ISO 7500 Class 1

Load range: 2%～100%F·S

Load resolution: 1/ 50000

Resolution of displacement: 0.01mm

Test speed(mm/min): 0.05-1000 stepless arbitrary setting

Speed accuracy: within ±1% / ±0.5% of set speed

E-Tensile space(mm): 800 (can be customized)

E-Compression space(mm): 800 (can be customized)

D-Test width(mm): 400 (can be customized)

F-Beam travel distance(mm): 1140

H-Workbench thickness(mm): 30

I-Base height(mm): 210

Power supply: AC220V±10%，50Hz/60Hz(can be customized)
