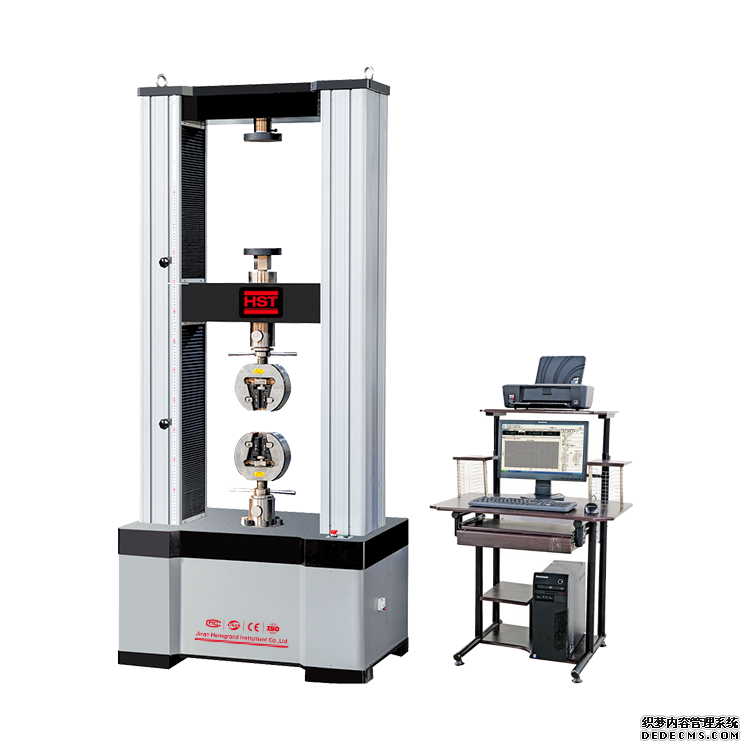

HST WDW-300E 计算机控制电子万能试验机 (300kN,AC220V)

Max. Load(kN): 300

Load accuracy: Class 0.5

Load range: 0.2%～100%F·S

Load resolution: 1/300000

Resolution of deformation: 0.04um

Accuracy of displacement: Within±0.5%of indicating load

Resolution of displacement: 0.01mm

Test speed(mm/min): 0.05-200 stepless arbitrary setting

Speed accuracy: within ±1% / ±0.5% of set speed

E-Tensile space(mm): 550 (can be customized)

E-Compression space(mm): 550 (can be customized)

D-Test width(mm): 600 (can be customized)

F-Beam travel distance(mm): 1150

H-Workbench thickness(mm): 108

I-Base height(mm): 560

Power supply: AC220V±10%，50Hz/60Hz (can be customized)
