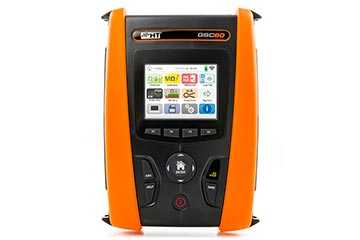

HT Instrument GSC60 安全测试和网络分析（触摸屏）

- Voltage (RCD, LOOP, Phase sequence):15~ 460V

- Frequency: 47.0~63.6 Hz

- Continuity test on protective and equalizing conductors: 0.01 ~99.9Ω

- Insulation resistance (DC voltage): 50, 100, 250, 500, 1000V; Range: 0.01~1999MΩ

- Z Line (Line-Line, Line-Neutral, Line-PE):0.00~199.9Ω

- First fault current (IT systems): 0.1~999mA

- RCD test (Molded case type)

RCD type: AC, A, B – General (G), Selective (S) and Delayed ( )

Rated tripping currents(IΔN): 10mA, 30mA, 100mA, 300mA, 500mA, 650mA, 1000mA

Line-PE, Line-N voltage: 100V~265V RCD type AC and A, 190V~265V RCD type B

Frequency: 50/60Hz ± 5%

- RCD tripping current: Type AC, A,B; (0.3~1.1) IΔN

RCD Molded type tripping time range [ms] (TT/TN system): 10mA; 30mA; 100mA;300mA;500mA; 650mA; 1000mA

RCD Molded type tripping time range [ms] (IT system): 10mA; 30mA; 100mA;300mA;500mA; 650mA; 1000mA

- Test on earth leakage delay tester RCDs (with RCDX10 optional accessory)

RCD type: AC, A , B – General (G), Selective (S) and Delayed ( )

Rated tripping currents (IΔN): 0.3A~10A

Line-PE, Line-N voltage: 100V~265V RCD type AC and A, 190V~265V RCD type B

Frequency: 50/60Hz±5%

- Earth leakage delay tester RCDs tripping current (RCD General): RCD Type: AC, A,B; (0.3~1.1) IΔN

- Earth leakage delay tester RCDs trip out time range [ms] (TT/TN system): 0.3A+1.0A; 1.1A+3.0A; 3.1A+ 6.5A, 6.6A+10.0A

- Earth leakage delay tester RCDs trip out time range [ms] (IT system): 0.3A+1.0A; 1.1A+3.0A; 3.1A+ 6.5A, 6.6A+10.0A

- RA – Non-trip earth loop impedance: 100~265V (Line-PE)

- RA – Systems with Neutral wire:1~1999 Ω

- Contact voltage (RCD and Ra test): 0~Utlim

- Contact voltage (EARTH test – TT system): 0 ~ 99.9V

- Contact voltage (EARTH test – TN system): 0 ~ 999V

- Ground resistance with 3-wire method: 0.01Ω ~ 49.99kΩ

- Soil resistivity with 4-wire Wenner method: 0.06Ωm~3.14MΩ

- Phase sequence rotation with 1-wire method: 100 ~ 265V

- Voltage drop on main power lines (ΔV%): 0~100%

- Leakage current (by HT96U optional clamp transducer):

1; 0.1mA

10 1 < FS <10; 0.01A

10≤ FS <300; 0.1A

300 ≤ FS <3000; 1A

- Environmental parameters (AUX function):

+ Temperature [°C]: -20°C ~ 80°C 0.1 °C

+ Temperature [°F]: -4°F ~ 176°F; 0.1 °F

+ Relative humidity [%HR]: 0 ~ 100%HR; 0.1% UR

+ DC output voltage: 0.1mV ~ 1.0V; 0.1mV

+ Illuminance [Lux] (Optional)

0.001Lux ~ 20.00 Lux; 0.001~0.02 Lux

0.1 Lux ~ 2000 Lux; 0.1 ~ 2 Lux

1 Lux ~ 20 kLux ; 1 ~ 20 Lux

- AC TRMS Voltage (Phase-Neutral): 15.0 ~ 380.0V

- AC TRMS Voltage (Phase-Phase): 15.0 ~ 660.0V

- Frequency: DC, 42 ~ 69.0 Hz

- DC/ AC TRMS Current (STD clamp):

≤ 10A: 5% FS ~9.99

10A ≤ FS ≤ 300: 5% FS ~ 299.9

300A ≤ FS ≤ 3000: 5% FS ~ 2999

- AC TRMS Current (FLEX clamp – 300A AC): 0.085~85.0mV

- AC TRMS Current (FLEX clamp – 3000A AC): 0.425 ~ 255.0mV

- DC Power: 0~9999kW

- Active power: 0~9999kW

- Reactive Power: 0~9999kW

- Power factor/ Cos φ: 0.70c ÷ 1.00 ÷ 0.70i

- Voltage harmonics: 0.1 ~ 100.0%

- Current harmonics: 0.1 ~ 100.0%

- Voltage anomalies (Phase-Neutral, Phase-PE): 15.0 ~ 380V

- Voltage anomalies (Phase- Phase): 15.0 ~ 660V

Included Accessories

HTFLEX33E  AC flexible clamp for currents up to 3000A, diameter 174mm, 4 pcs

C2033X  3-banana to Shuko plug cable

UNIVERSALKITG3  Set of 4 cables, 4 alligator clips and 3 test leads

KITTERRNE  Soft carrying bag containing 4 cables and 4 earth rods

PR400  Remote switch probe

PT400  Stylus

BORSA2051  Soft carrying bag

TOPVIEW2006  PC software and optical-to-USB connection cable C2006

YABAT0003000  Rechargeable NiMH battery 1.2V, AA, 6 pcs

A0060  Power Supplier\Battery Charger 100/230Vac - 15Vdc, 10W CAT IV

C7051 Power cable Shuko-Europlug ground-less 1.50mt

 SP-5100  Hands Free kit

Quick user’s guide

User’s manual on CD-ROM

Calibration certificate ISO9000

Brochure

Datasheet
