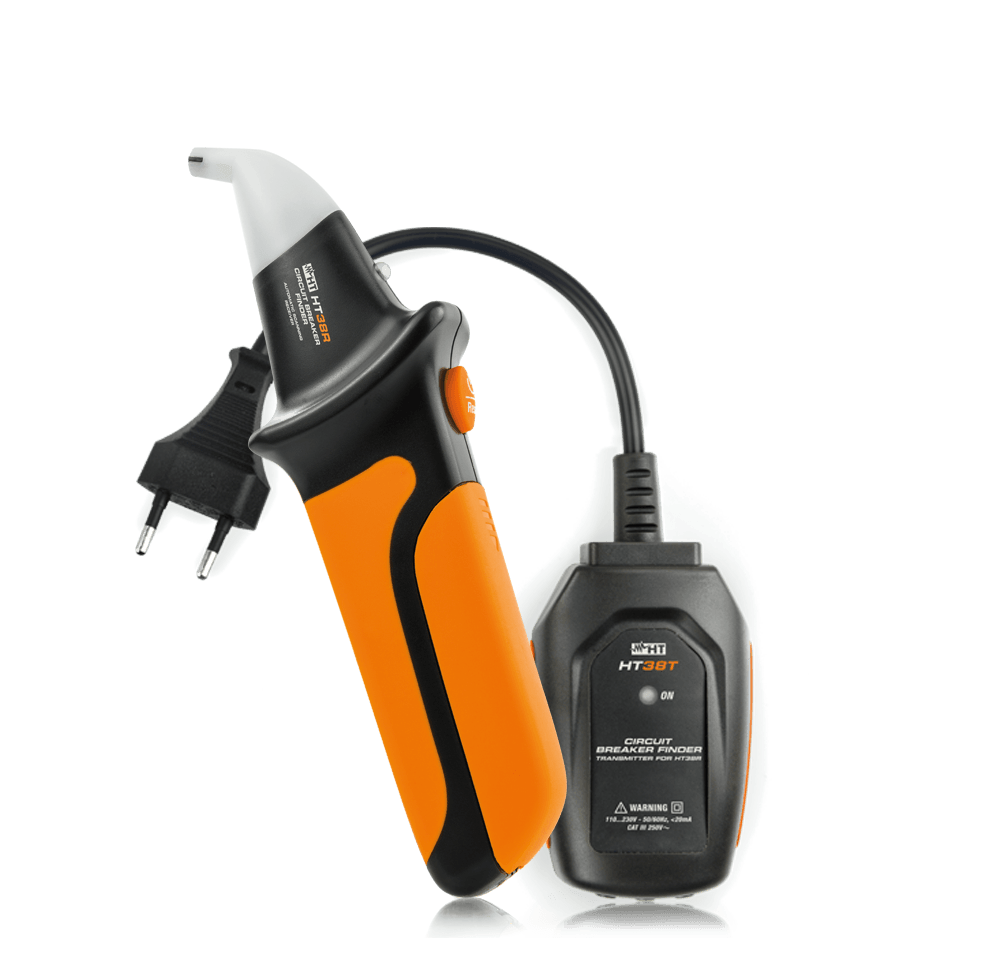

HT Instruments HT38 断路开关定位器

Transmitter HT38T:

• Power supply: 110V / 230VAC, 50/60Hz

• Signal output current: <20mA

• External connection: integrated Schuko Europlug

• Distance from receiver: max 500m (1640ft) (230V mains supply); max 300m (984ft) (110V mains supply)

• Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Operating humidity: <80%RH

• Storage temperature: 0°C ~ 50°C (32°F ~ 122°F)

• Storage humidity: <95%RH

• Size (L x W x H): 95 x 60 x 30mm (4 x 2 x 1in)

• Weight: 140g (5 ounces)

Receiver HT38R:

• Power supply: 1x9V alkaline battery type IEC 6F22

• Battery life: approx. 19 hours

• Auto Power OFF: after 3 minutes’ idling

• Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Operating humidity: <80%RH

• Storage temperature: 0°C ~ 50°C (32°F ~ 122°F)

• Storage humidity: <95%RH

• Size (L x W x H): 195 x 60 x 35mm (8 x 2 x 1in)

• Weight: 130g (5 ounces)

• Mechanical protection: IP40

General specifications:

• Safety: IEC/EN61010-1

• EMC: IEC/EN61326-1

• Insulation: double insulation

• Pollution level: 2

• Measurement category: CAT III 250V

• Max operating altitude: 2000m (6562ft)
