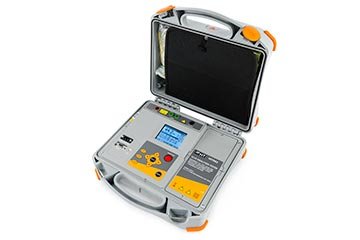

HT Instrument HT7052 可编程的10KV数字绝缘电阻测试仪

INSULATION RESISTANCE: 120kΩ~10.00TΩ ; ±(5.0%rdg + 3dgt)

Range of test voltage:  0 ~ 9999V & ≥10kV

Range of test current : 0.00 ~ 5.50mA; ±(5.0%rdg + 0.05nA)

MEASUREMENT OF DAR, PI, DD PARAMETERS: 0.01~ 100.0

INSULATION MEASUREMENT WITH RAMP TEST VOLTAGE : 2000 ~ 9999V & ≥ 10kV

DC WITHSTANDING TEST : 500 ÷ 9999V & ≥ 10kV

Range of discharging current: 0.000~ 5.50mA

AC/DC VOLTAGE : 0 ~ 600V; ±(3.0% rdg + 4V)

Voltage frequency: 0 e 45.0 ÷ 65.0Hz ; ±0.2Hz

CAPACITANCE: 0.0~50.0µF; ±(5.0%rdg + 2dgt)

STANDARD ACCESSORIES

Red terminal, protection 10kV, 2m

Black terminal, protection 10kV, 2m

Terminals (red/black), protection 10kV, 2 pieces

Green guard terminal

6 x 1.2V rechargeable batteries NiMH IEC LR20

ISO9000 calibration certificate

User Manual

Cable RS-232

Red lead terminal, protection 10kV, 2m

C5700 BIPOLAR POWER SUPPLY CABLE

TERAVIEW Multi-language Software

C2007

5004-IECV ALLIGATOR CLIP FOR CABLES WITH 4MM BANANA
