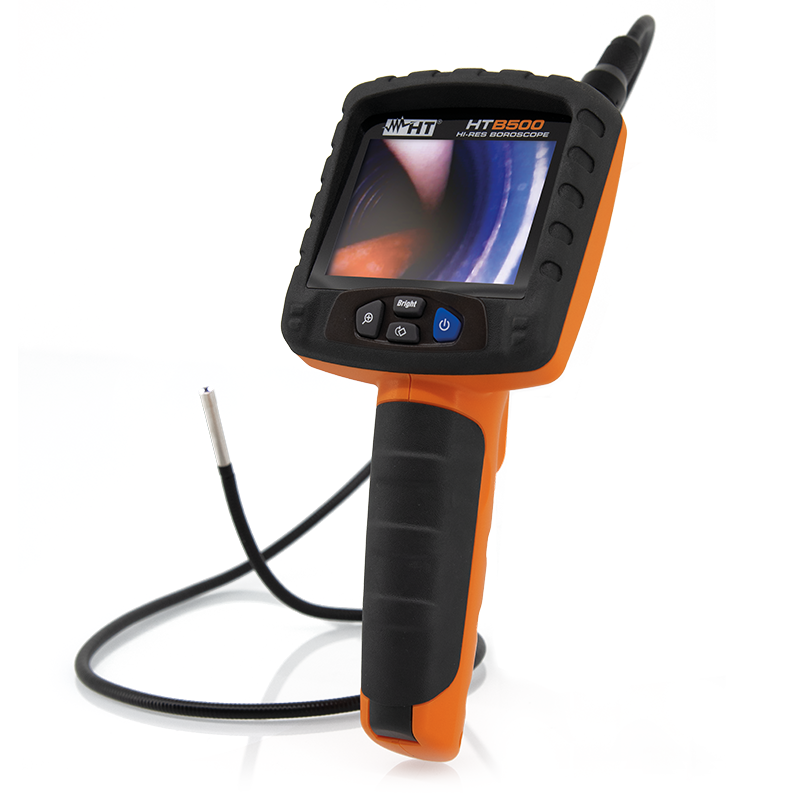

HT Instruments HTB500 光学孔径检查仪 (具有可充电电池)

Sensor size: 1/4" (CMOS), 300.000pxl

Max sensor resolution: 640x480pxl

Max sampling frequency: 30FPS/S

Color depth: 24bit

Image focus: fixed (5cm ÷ 15cm) (2.0in ÷ 5.9in)

Zoom image: 1.0x ÷ 2.0x

External probe length: 1m (39in)

Probe diameter: 6mm (0.2in)

Iluminación de la cámara: 4 LED white light

Brightness adjustment: 10 levels

Rechargeable battery: Li-ION, 2000mAh

Low battery indication

Duration: 5 hours

Size (LxWx H) (mm): 250 x 100 x 95mm

Weight in grams (batteries included): 345g

Colour LCD display: 640x320pxl

Mechanical protection: IP54 (instrument), IP67 (external probe)

PAL/NTSC video output

Datasheet
