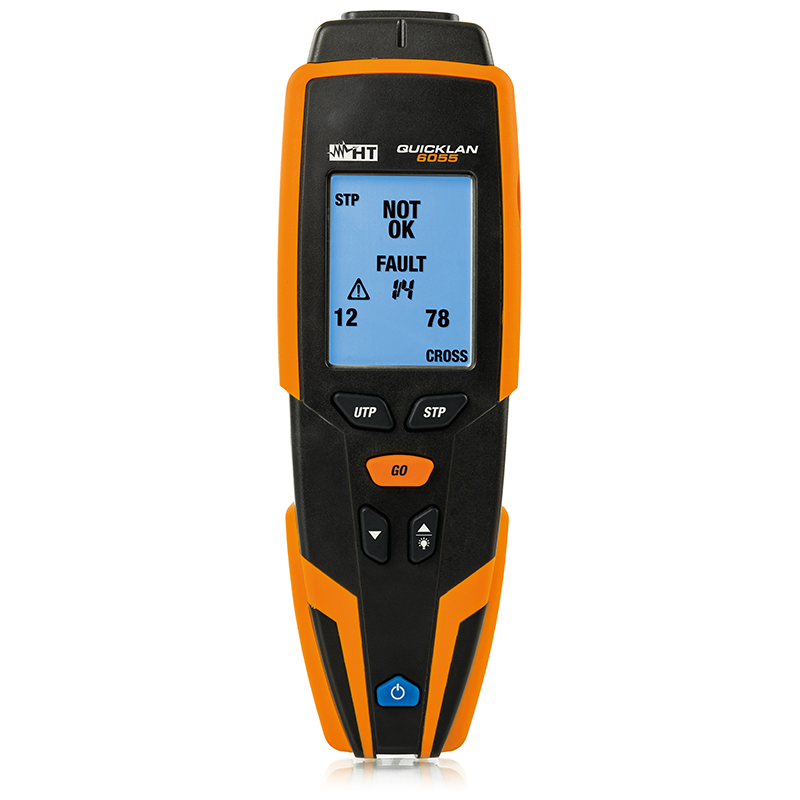

HT Instruments QUICKLAN 6055 LAN wire mapper

Cable type:

+ UTP, STP: (twisted pairs)

+ Categories: CAT3, 5, 5E, 6, 6A, 7

+ Max length of cable: 200m

Error conditions detected (Wire-mapping): Open cables, Shorted cables, Reversed cables, Crossed cables, Split cables, Miswire

Reference guidelines: TIA 568/B, ISO 11801

Max allowed input voltage: 24V

Dimensions (L x W x H): 190 x 65 x 45mm

Weight (included battery): 235g

Mechanical protection: IP40

Input connector: RJ45

Battery type: 1x9V alkaline type IEC6F22

Battery life: ca 600h (backlight OFF), ca 16h (backlight ON)

Auto Power OFF: after 4min of idleness

Working temperature: 0°C~ 40°C

Working humidity: <80%RH

Storage temperature: 0°C~ 40°C

Storage humidity: <80%RHCable type:

+ UTP, STP: (twisted pairs)

+ Categories: CAT3, 5, 5E, 6, 6A, 7

+ Max length of cable: 200m

Error conditions detected (Wire-mapping): Open cables, Shorted cables, Reversed cables, Crossed cables, Split cables, Miswire

Reference guidelines: TIA 568/B, ISO 11801

Max allowed input voltage: 24V

Dimensions (L x W x H): 190 x 65 x 45mm

Weight (included battery): 235g

Mechanical protection: IP40

Input connector: RJ45

Battery type: 1x9V alkaline type IEC6F22

Battery life: ca 600h (backlight OFF), ca 16h (backlight ON)

Auto Power OFF: after 4min of idleness

Working temperature: 0°C~ 40°C

Working humidity: <80%RH

Storage temperature: 0°C~ 40°C

Storage humidity: <80%RH
