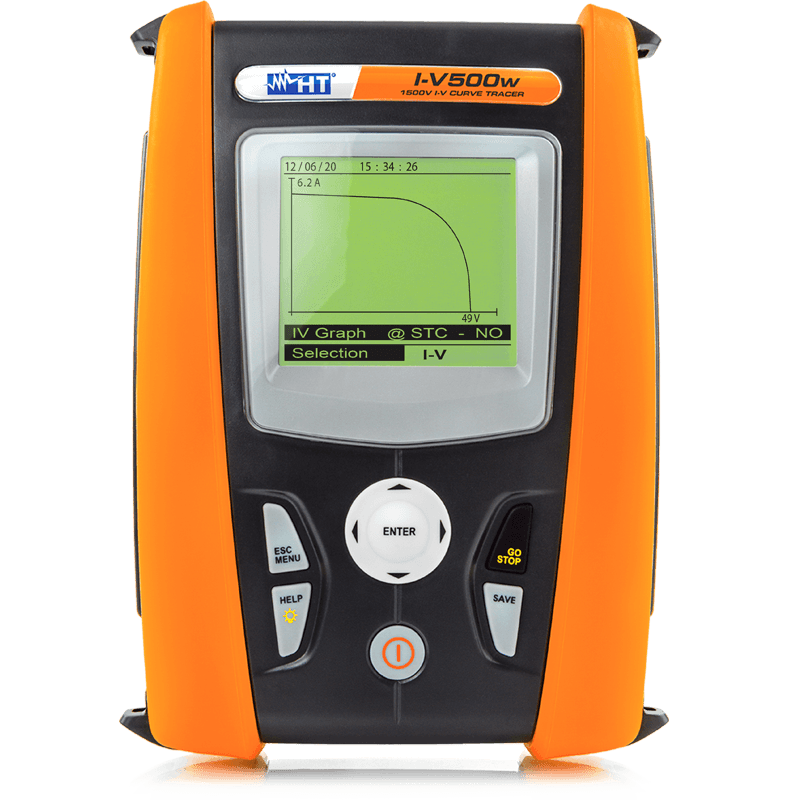

HT Instruments I-V500w 便携式I-V曲线测试仪

Detection of I-V curve on PV modules and strings: 1500V/10A - 1000V/15A

Quick IVCK test for measuring Voc and Isc on PV modules and strings: VOC 1500V / ISC 15A

Internal memory capacity: 249 I-V Curves

Use of remote unit SOLAR-02 with USB \ RF connection: RF

Custom management of internal PV module database: 30 internal / 30.000 on software/app

Temperature measurement of cell and environment : Yes

Measurement of irradiation with reference cell : Yes

Summary table of main electric parameters : Yes

Provided PC interface with software for Windows : Yes

Integrated WiFi connection and compatibility with HTANALYSIS App : Yes

Backlit LCD display : Yes

Auto Power OFF : Yes

Protection category: CAT III

Weight in grams (batteries included): 1200

Size (LxWxH) (mm): 235x165x75
