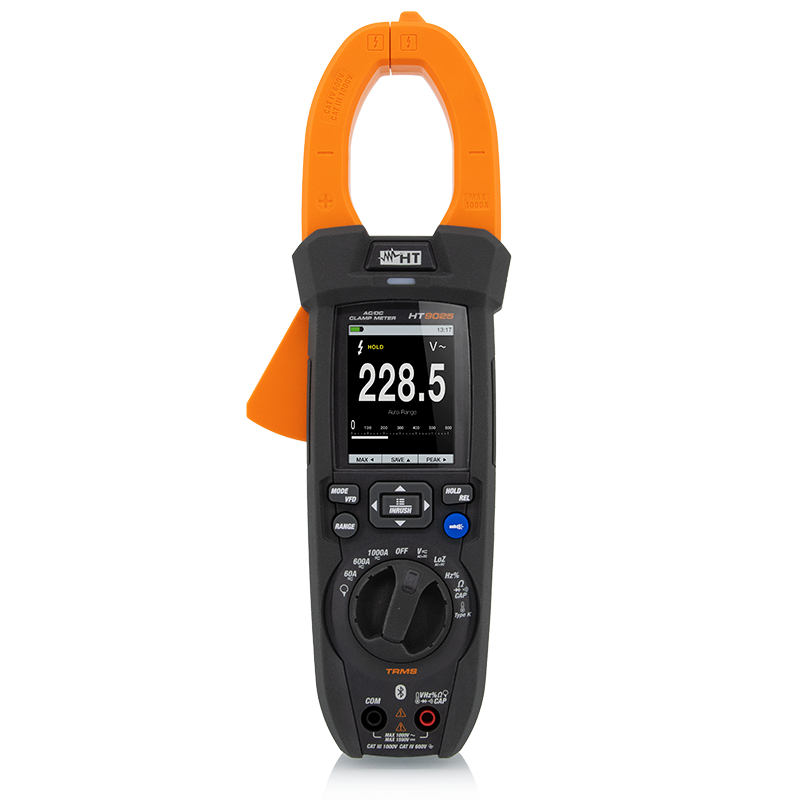

HT Instruments HT9025 AC/DC 钳形表 (1000A,具有数字记录器)

TRMS

Current measuring range: 1000A

AC/DC current: AC+DC

AC/DC voltage: 1000VAC/1500VDC

Leakage current with optional clamp meter External pliers

Frequency

Resistance and continuity test with buzzer

Capacity

Diode test

Duty Cycle (%)

Temperature with K-type probe

AC/DC current: External clamp transducer

Inrush current measurement (INRUSH)

Measurement category: CAT IV 600V CAT III 1000V

Maximum diameter for clamp: 40mm

Measuring counts: 6000

Backlight

Bargraph

Autorange

Auto power off

Detection of AC voltage without contact

Data HOLD function

MIN/MAX function

Relative measurement

Colour LCD display

Datalogger and Graph

Memory for data saving

Power supply: LI-ION battery

Size (LxWx H) (mm): 280x100x50

Weight in grams (batteries included): 505
