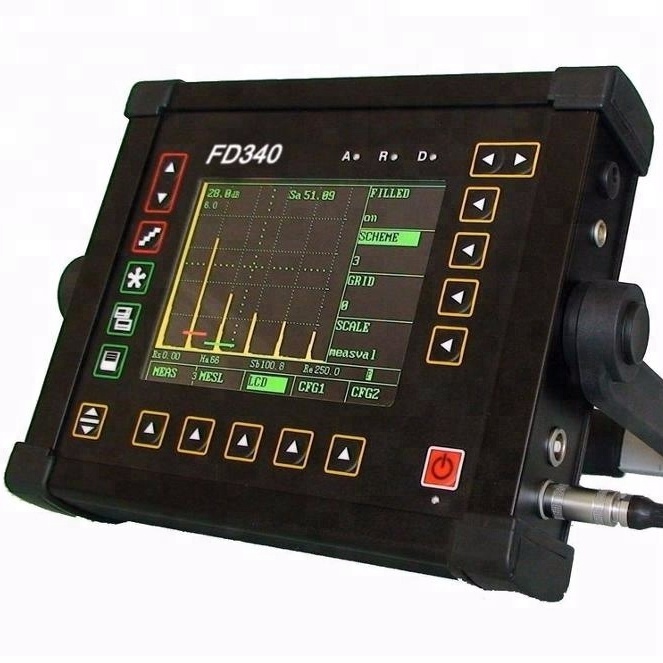

HUATEC FD340 通用超声波探伤仪,带LED背光明亮彩色显示屏

  • 制造商: HUATEC
    Model: FD340
    来源: China
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specification:
- Frequency: broadband, 5MHZ, 10MHz third gear
- repetition frequency: the highest repetition rate of 10kHz
- sensitivity margin: The 2.5Pφ20Z probe detected DB-PZ20-2 test block, φ2 flat Kong Lingmin degree margin ≥ 46dB.
- Resolution: ≥ 30dB.
- Vertical linear error: ≤ 8% (output signal <4V)
- Horizontal linear error: ≤ 1%
- Dynamic Range: ≥ 30 dB
- blind spot: <10mm
- attenuator error: 12dB error ≤ 1dB
- front door and wave-wave gate width adjustment range: 500us, the amount of 50ns step
- Delay display range: 500us, the amount of 50ns step
- Power supply: AC220V ± 10%, 50Hz
