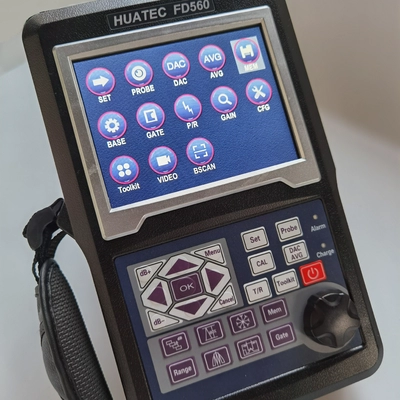

HUATEC FD560 超音波探伤仪

Specifications

Testing Range:0-10000 mm ,at steel velocity

Material Velocity Range:100~20000 m/s

Pulse Repetition Frequency:10-2000Hz

Dynamic Range:≥38dB

Linearity: Horizontal: +/-0.2%, Vertical: 2.0%(Horizontal:+/-0.2% FSW Vertical: 0.25% FSH )

Resolving Power:>40dB (5P14)

Sensitivity Leavings:>68dB

Reject (suppression): 0 to 80% full screen height

500 independence setup, any criterion can be input freely, we can work in the scene without test block;

Large Memory: 1000 A graph

Testing Modes: Pulse echo, dual element and thru-transmission

Probes Optional Types: Single Straight, Single Angle, Dual Straight, Dual Angle,Through,Creeping,Surface

Gate Monitors: Two independent gates controllable over entire sweep range

Display Units: Inch or millimeter

Power Requirements: AC Mains 100-240 VAC, 50-60 Hz

Display Delay: -20 to 3400 µs

Probe Delay/Zero Offset : 0 to 99.99µs

Battery:Internal rechargeable Li-ion battery pack rated 7.2V at 8000 mAh

Battery Working Time:15 hours nominal operating time depending on display brightness

Battery Charging Time:4 hours typical recharge time

Size:H×W×D(mm):250×165×55 (mm)

Weight :1.2kg

Operating Temperature: -10℃ to 50℃

Storage Temperature: -30℃ to 50℃

Pulse Energy: 70V,100V,200V, 300V, 400V, 500V selectable

Rectification: Positive half wave, negative half wave, full wave, RF System

Bandwidth (amplifier bandpass ): 0.2 to 25 MHz

Gate Monitors: Two independent gates controllable over entire sweep range

Sensitivity: 120 dB max in selectable resolution 0.1, 1.0, 2.0, 6.0 dB.

Transducer Connections: BNC or LEMO optional


Standard Package

Portable Ultrasonic Flaw Detector FD560 1pc

Straight Beam Transducer (2.5 MHz, Φ20) 1pc

Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°) 1pc

Connect Cable for the transducer (BNC-LEMO 00,or optional LEMO 01-LEMO 00) 1pc

Rechargeable Li-Ion Battery Package, 8 amp hour 1pc

Power supply/charger unit 1pc

Operating Manual in English 1pc

Details

Top features

★ User friendly operation such as calibration, making curves, etc.

★ All curve tools included: DAC, AVG, TCG AWS, etc.

★ Pulse repeatition frequency: 10-2000Hz precise adjust, high speed scan, no miss out.

★ High signal to noise ratio, clear and stable echo, anti-noise design, perfect for tough working conditions.

★ 12-digit AD, high speed sampling leads to better echo diagram with all details. Sensitive and can detect even tiny flaws.

★ Customer can use probe frequency 20M .

★ IP65 protection standard. protective rubber casing. damping support makes it stands in any angle.

★ Battery works continuouly 15 hours after one charge.
