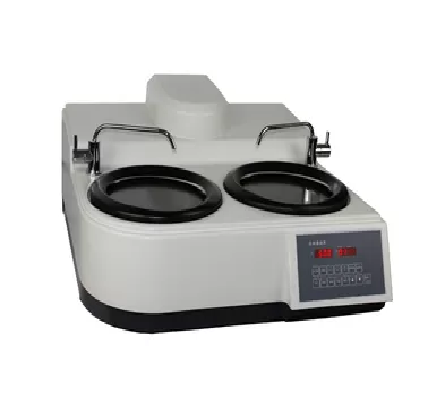

HUATEC HAP-2X 两块工作板是极好的金相设备

Speed:0-1000 r/min(customized)

Disc diameter:254mm(Optional 230,220,203mm)

Power:550W,220V,60/50Hzz

Overall Dimension : 760×710×330mm

Net weight: 70Kg

Standard Accessory:

- Magnetic working plate(254mm): 2 pieces

- Anti-sticky disc(254mm): 2peices

- One side sticky grinding paper(250mm) 320#,1000#: 10 pieces/each

- One side sticky polishing cloth(250mm), velvet fabric: 1peice

- Diamond polishing liquid,6micron,200ml: 1bottle

- Lubrication cooling liquid,blue,200ml: 1bottle

- Waterproof ring: 1 piece

- Input-water pipe adapter: 1 piece

- Input-water pipe: 1 piece

- Power cable: 1peice

- Output-water pipe: 1 piece

- Machine certification : 1 set

- Machine manual: 1 set

- Packing list: 1 set

- Machine Guarantee card: 1 set

Optional Accessory:

Metallographic grinding paper:GSC250A

- 100peices /package

- material: black carborundum

- sand size:P80# 120# 180＃ 320＃ 600＃ 800＃ 1000＃ 1200＃ 1500＃ 2000＃

- size:Φ250mm

- waterproof and one side sticky, can be attached on the grinding plate directly

Anti-sticky disc: MAGNOMET

- anti-sticky disc 5peices/box

- diameter:Φ254mm

- Surface coating with Special anti-sticky layer, can attach the sticky paper and polishing cloth directly, and easily replace without sticky mark.

- Can be reuse

- Can be replace the BUEHLER and STRUERS same production

Polishing cloth: FT250A

- polish cloth 10peices/package

- velvet fabric(long floss) / canvas(short floss)/ Woolen cloth(short floss)/ silk cloth(no floss)

- Φ250mm

- one side sticky, can be attached directly on the grinding plate

Diamond grinding and polishing liquid: DSU

- Diamond grinding and polishing liquid,500ml/bottle

- Diamond suspending in the liquid, can be dropped automatically or watering pot, Uniformly distribution

- size:0.25, 0.5, 1, 1.5, 2.5, 3, 3.5, 5, 6, 7, 9, 10, 14, 15, 20, 28, 40micron, for different material
