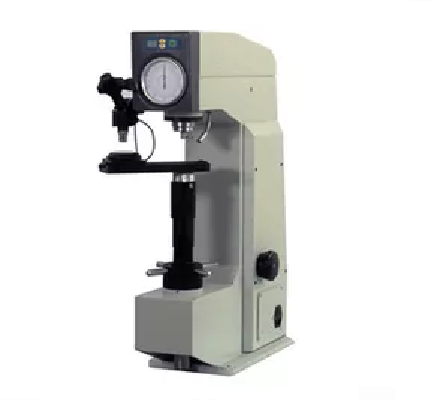

HUATEC HBRV-187.5 电动布氏硬度计 (20HR ~ 100HR, 8HV ~ 2900HV, 8HBW ~ 650HBW)

Initial test force: 98.07N(10kg) allowance±2.0%

Total test force: 98.07N(10kg)~1839N(187.5kg) allowance:±1.0%

Brinell test force: 31.25kgf(306.5N),62.5kgf(612.9N),187.5kgf(1839N)

Brinell scale: HW2.5/31.25,HBW2.5/62.5, HBW2.5/187.5,HBW5/62.5

Diamond Indenter Specifications: Diamond Rockwell Indenter,Diamond vickers Indenter

Steel ball Indenter specifications: φ1.5875mm,φ2.5mm,φ5mm Steel ball Indenter

Rockwell test force: 60kgf(588N) 100kgf(980.7N) 150kgf(1471N)

Rockwell scale: HRA HRB HRC HRD HRE HRF HRG HRK HRH

Vickers test force: 30kgf(294.2N) 100kgf(980.7N)

Vickers scale: HV30 HV100

Minimum unit of measurement: Brinell:0.004mm Vickers:0.002mm

Microscope magnification: 37.5x,75x

Rockwell maximum test height: 260mm

Brinell,Vickers maximum test height: 200mm

Durating time: 2~60s

Rockwell hardness test range: 20HR~100HR

Vickers hardness test range: 8HV~2900HV

Vickers harness test range: 8HBW~650HBW

Power: AC220+5%,50~60Hz

Shape Size(mm): 540×230×820mm

Host Weight: 80kg

Standard Configuration:

- Rockwell Headers: 1

- φ1.5875,2.5,5mmHard alloy ball: 1

- Vickers Indenter: 1

- Fuse2A: 2

- Measurement microscope: 1

- Headlamp: 1

- Hardness block: 5

- Large, medium and V test stations: 1

- Power cord: 1

- Slide the test platform: 1

- Objective lens: 2

- Product specifications: 1
