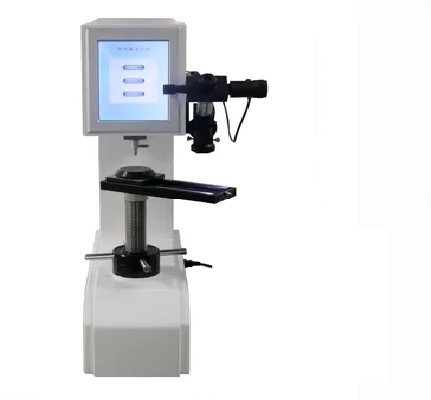

HUATEC HBRV-187.5DX 布氏硬度测试设备

Test force: 5～187.5kgf

Brinell scale: HBW1/5,HBW2.5/62.5,HBW1/10,HBW2.5/15.625,HBW1/30,HBW2.5/31.25,HBW2.5/62.5,HBW10/100,HBW5/125,HBW2.5/187.5 (select 10 scales)

Hardness resolution: 0.1HBW

Rockwell scale: HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV

Hardness resolution: 0.1HR

Vickers scale: HV5,HV10,HV20,HV30,HV40,HV50,HV60,HV80,HV100,HV120 (select 10 scales)

Hardness resolution: 0.1HV

Objective: 2.5X,5X(10X,20X optional)

Magnification of microscope: Brinell:37.5X, Vickers:75X

Hardness measurement: Brinell:8～650HBW Rockwell:20～100HR Vickers:8～2900HV

Data output: LCD display,U disk

Max height of specimen: Rockwell:220mm, Brinell Vickers:150mm

Head - wall distance: 200mm

Dimension: 560*260*800mm

Weight: About 70Kg

Power: AC220V+5%,50-60Hz

Standard Accessories:

- Lighting (internal lighting, external lighting): 1

- Test block(HRC high,HRC low HRB ,HBW2.5/187.5,HV30): 5

- Rockwell,Vickers diamond indenter: Each 1

- Ball indenter(φ1.5875,2.5,5mm): 3

- Eyepiece(15X): 1

- Objective(2.5X,5X): 2

- Sliding test table: 1

- Large, medium, V-test sets: Each 1

- U memory disk, touch pen: Each 1

- Fuse 2A: 2

- Level: 1

- Regulating screw: 4

- Power cable: 1

- Dust bag: 1

- Certificate, warranty card: 1

- Manual: 1
