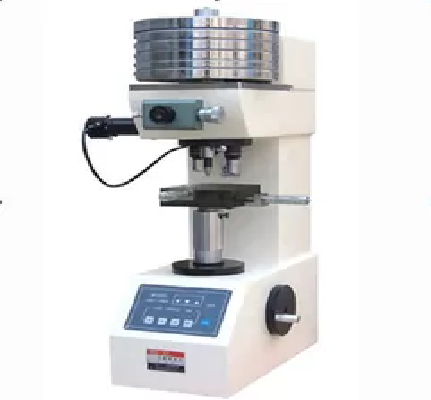

HUATEC HBV-30A 布氏和维氏硬度计 (8-650HBW, 10-3000HV)

Measuring range: 8-650HBW, 10-3000HV

Test force: 9.807, 24.52, 49.03, 98.07, 196.1, 294.2N (1, 2.5, 5, 10, 20, 30kgf)

Max. height of test piece: 130mm

Depth of throat: 100mm

Magnifications of the measuring system: 500X, 125X

Min. scale value of the optical micrometer: 0.25um

Power supply: 220 AC or 110V AC, 50 or 60Hz

Dimensions: 438 x 382 x 708mm

Weight: approx. 88kg

Standard accessories:

- Coordinate anvil: 1 pc.

- Large flat anvil: 1 pc.

- Small flat anvil: 1 pc.

- V-notch anvil: 1 pc.

- Tungsten carbide ball penetrator: Φ1, Φ2mm, 1 pc. each

- Diamond pyramid penetrator: 1 pc.

- Brinell standardized block: 2 pcs.

- Vickers standardized block: 2 pcs.

- Electronic calculator: 1 pc.
