HUATEC HCDX-D 便携式多功能磁探伤仪
制造商: HUATEC Model: HCDX-D - 联系
Technical parameters:
Power supply: AC 220V ± 10% 50HZ 5A
Output: AC 38V 10A
Type A.D.E.O probes are optional and available
Inspection speed: ≥6 m/min
Temperature rise of probe: ≤60℃
Working beat: it is recommended to work for a long period of continuous operation: magnetizing time ≤3 seconds, gap time ≥5 seconds
Weight: about 6.5Kg (main unit)
D probe: Lifting force: AC≥ 5kg DC≥18Kg
Pole distance: 50-200mm (adjustable)
Working voltage: AC=38V, DC=9V
Weight: 2.5 Kg
Standard delivery:
Host HCDX-E 1

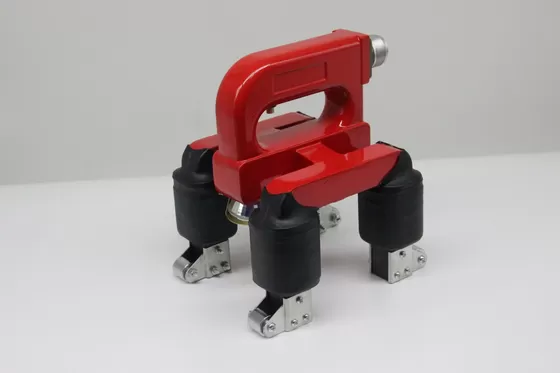

Type E probe 1
The power line 1
The probe line 1
Standard specimen 1
Operation manual 1
Certificate 1
Introduction:
HCDX- composite magnetic powder flaw detector adopts silicon controlled contactless switch, with low noise, strong magnetic force, long service life and simple operation, suitable for field and laboratory use. The instrument adopts combined configuration, and users can choose probe freely according to their needs. Type A, D, E, O probe can be configured according to user requirements.
The importance of magnetic particle flaw detector:
1, can find the hidden defects of ferromagnetic raw materials, to avoid the loss of parts processing costs;
2. Recessive defects of ferromagnetic parts can be found to avoid the occurrence of safety accidents;
3, can find the process defects in the processing process of ferromagnetic parts, improve the processing technology;
4. Fatigue cracks in the stress concentration zone of ferromagnetic parts can be found to improve the design process.
Application:
Mainly used to detect surface and near surface cracks of ferromagnetic workpiece.
Boiler pressure vessel, steel structure, forgings, castings, welding parts, machined parts, etc.
