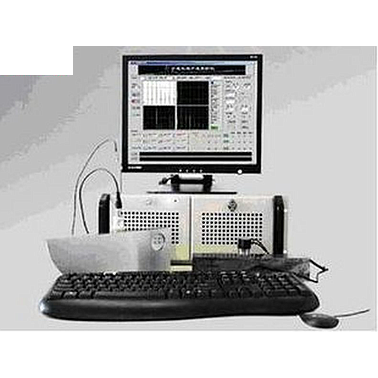

HUATEC HFD-1000 高稳定性多通道超声波探伤仪 HFD-1000,带2 - 16通道

  • 制造商: HUATEC
    Model: HFD-1000
    来源: China
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specifications

Frequency: broadband, 5MHZ, 10MHz third gear
repetition frequency: the highest repetition rate of 10kHz
sensitivity margin: The 2.5Pφ20Z probe detected DB-PZ20-2 test block, φ2 flat Kong Lingmin degree margin ≥ 46dB.
Resolution: ≥ 30dB.
Vertical linear error: ≤ 8% (output signal <4V)
Horizontal linear error: ≤ 1%
Dynamic Range: ≥ 30 dB
blind spot: <10mm
attenuator error: 12dB error ≤ 1dB
front door and wave-wave gate width adjustment range: 500us, the amount of 50ns step
Delay display range: 500us, the amount of 50ns step
Power supply: AC220V ± 10%, 50Hz
