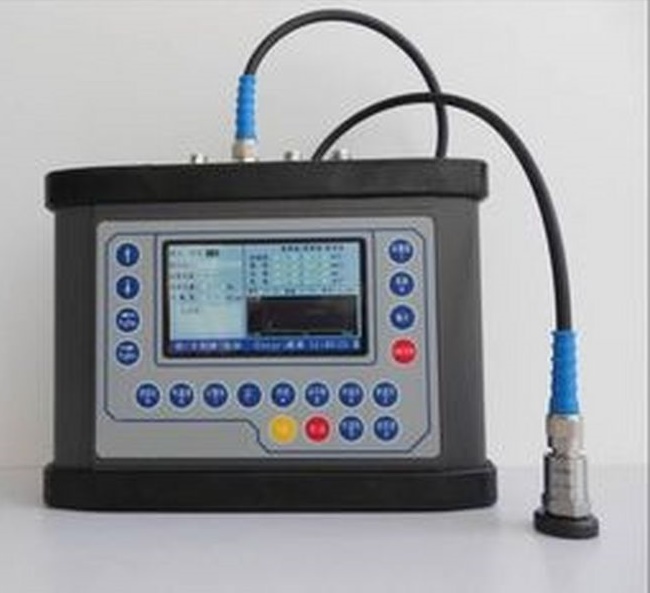

HG-601A Huatec 现场数据采集器便携式振动分析仪平衡器HG601A双通道

Specifications:

- Rotation Speed: 120-30,000 r/min
- Input: Accelerometer & Voltage for velocity or displacement sensors
- Measure Acceleration, Velocity, Displacement, Voltage and Acceleration Envelope
- Balancing by the method of influence coefficient
- Vibration value accuracy 5%
- Operating Environment: -30°——95°
- Normal temperature sensor Environment:-35°——80°
- High temperature sensor Environment:-35°——130°
- Frequency response for vibration overall value & Spectrum: 0.5Hz-10kHz
- Hanning windowed Spectrum
- Measurement Range & Resolution
- Acceleration   250m/s2      0.1m/s2
- Velocity         200mm/s   0.1mm/s
- Displace        5000 μm     1 μm
- Envelope       25m/s2       0.1m/s2
- Laser tachometer
- Size: 210*130*40mm
- Weight: 950g(including battery)

HG-601A/ HG603A Pack List

- Vibration Data Collector: 1 pc
- Accelerometer: 2pcs
- Magnetic Mount: 1 pc
- Steel Extension Probe: 1 pc
- Battery Charger: 1 pc
- Accelerometer Cable: 3 pcs
- USB Communication Cable HG601A): 1 pc
- Balancing Module: 1 pc
- Tacho/Trigger Sensor and cable: 1 pc
- Reflector Paper set: 1 pc
- Quick Start Guide: 1 pc
- HG software CD (HG601A): 1 pc
- Certificates of HG-601A/HG-603A and sensors: 3 pcs
- Carrying Case: 1 pc
- Mount base stand for tacho senso: 1 pc
