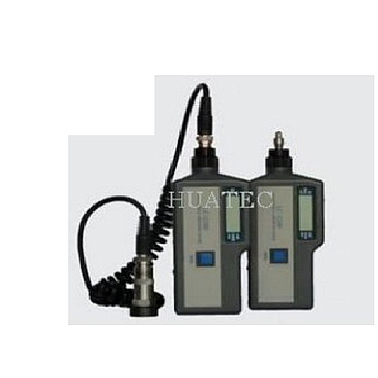

HUATEC HG-6500BLC 振动计
制造商: HUATEC Model: HG-6500BLC 来源: China - 联系
Specifications
Sensors: one rotary shear accelerometer
Split charge amplifier built-in shear accelerometer
Range: Acceleration 0.1 ~ 199.9m/s2 (single peak) (5 or 10 ~ 1KHz; 1K ~ 10KHz)
Speed of 0.1 ~ 199.9mm / s (RMS) (5 or 10 ~ 1KHz)
Displacement of 0.001 ~ 1.999mm (peak) (5 or 10 ~ 1KHz)
Temperature 0 ℃ ~ 400 ℃
Accuracy: 5% ± 2 vibration words
Temperature 1% ± 1 word
Display: LCD display three and a half
Maintain the characteristics: measurement value is automatically maintained, automatic shutdown delay
Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)
Power: 9V laminated battery 1 can be used continuously 25 hours
Body volume: 185mm × 68mm × 30mm
Weight: 200g
HG-6500 Pocket vibration (temperature) instrument, mainly used in machinery and equipment vibration
displacement, velocity (intensity) and the acceleration, temperature parameters of the measurement
instrument in the bearing housing using the measured data, the control of international standard ISO2372
, Or the use of enterprises, the standard machine, you can determine the equipment (fans, pumps,
compressors, motors, etc.) in which the current state (well, pay attention or dangerous, etc.).
Specifications
Sensors: one rotary shear accelerometer
Split charge amplifier built-in shear accelerometer
Range: Acceleration 0.1 ~ 199.9m/s2 (single peak) (5 or 10 ~ 1KHz; 1K ~ 10KHz)
Speed of 0.1 ~ 199.9mm / s (RMS) (5 or 10 ~ 1KHz)
Displacement of 0.001 ~ 1.999mm (peak) (5 or 10 ~ 1KHz)
Temperature 0 ℃ ~ 400 ℃
Accuracy: 5% ± 2 vibration words
Temperature 1% ± 1 word
Display: LCD display three and a half
Maintain the characteristics: measurement value is automatically maintained, automatic shutdown delay
Signal Output: AC 2V peak (full scale and the load is greater than 10K ohms)
Power: 9V laminated battery 1 can be used continuously 25 hours
Body volume: 185mm × 68mm × 30mm
Weight: 200g
